Ao Smith 100110138 Elmt FI09615048M 15 kW (17.5-inch) 100110138

Product Description

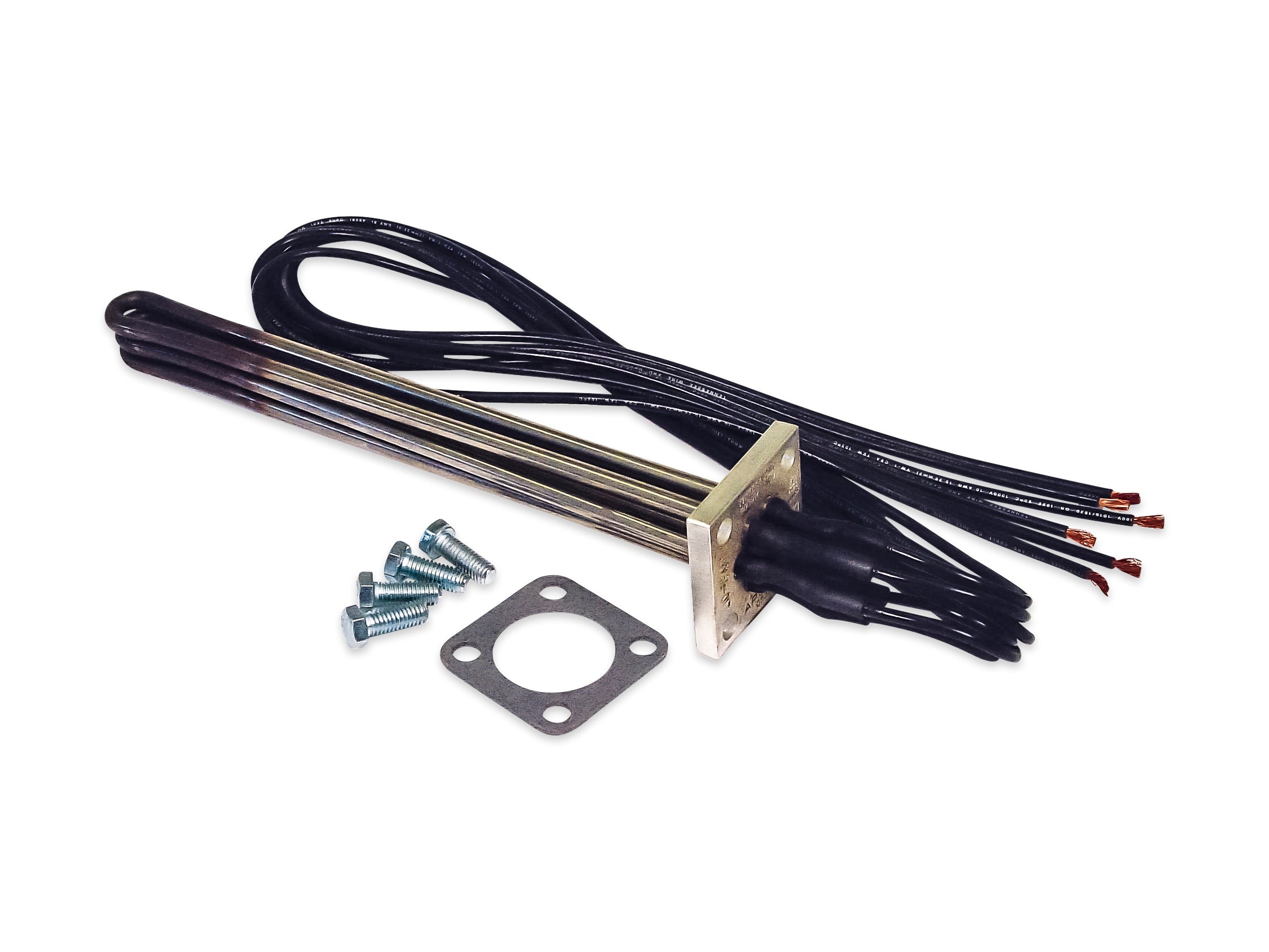

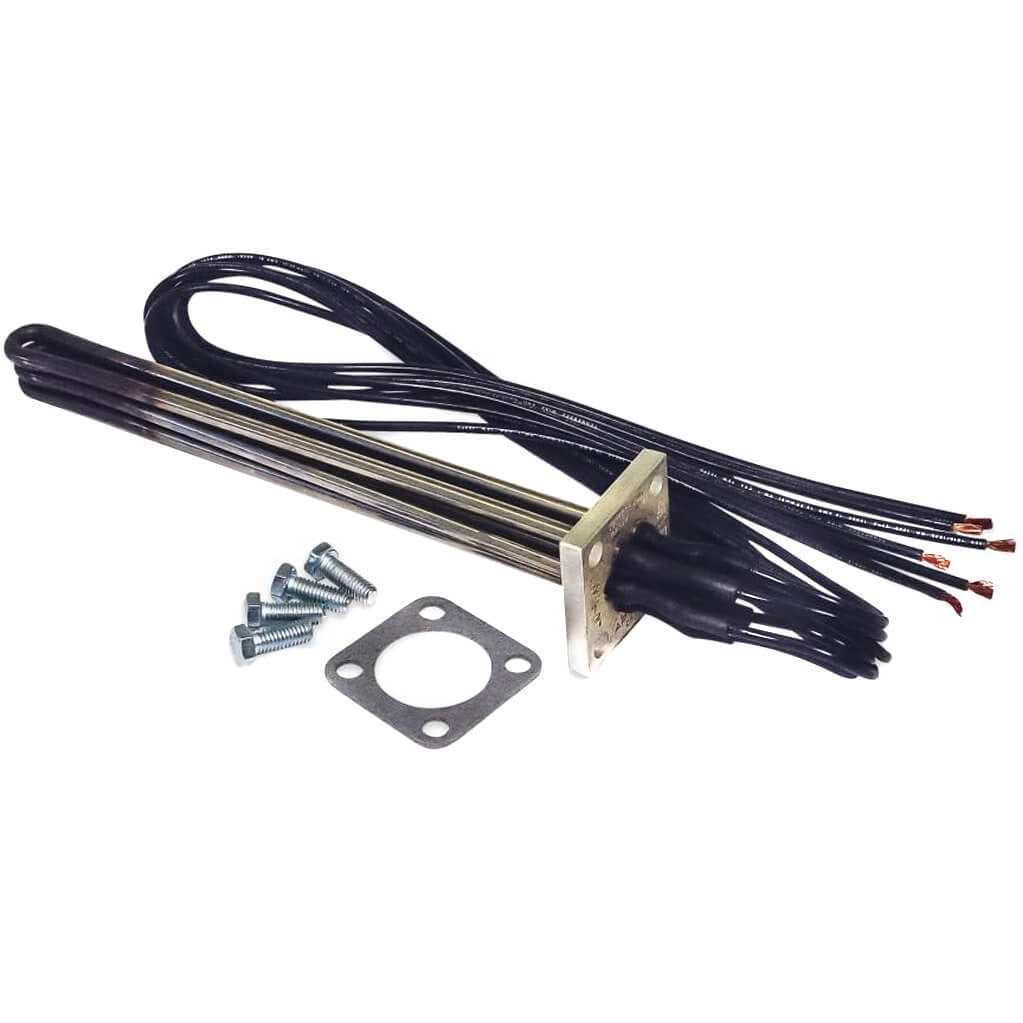

The AO Smith 100110138 is a flanged heating element (Elmt FI09615048M) rated 15 kW at 480 V with a nominal 17.5-inch length for commercial water-heating applications. The element uses Incoloy nickel-alloy sheathing and medium watt density and includes a gasket and forged steel flange for installation in 2 1/2-inch bolt-circle round or square flanges. It is listed for use in DSE, CMC, SU, and DVE/DHE series models.

• Rated power: 15 kW at 480 V; nominal length 17.5 inches (Max A dimension 17 1/2 inches).
• Incoloy nickel-alloy sheath with medium watt density; includes gasket and forged steel flange.
• Compatible with DSE, CMC, SU, and DVE/DHE series; fits 2 1/2-inch bolt-circle round and square flanges.

Product Highlights

Flanged Incoloy commercial heating element, 15 kW/480 V, 17.5-inch nominal length, includes gasket and forged steel flange; compatible with multiple AO Smith commercial water heater series.

Product Information

Standard Information

• Brand: AO SMITH
• Manufacturer Part Number: 100110138
