A-1 Compressor KALA-015A-TAC-R Semi Compressor 208/230V 3-Phase

Product Description

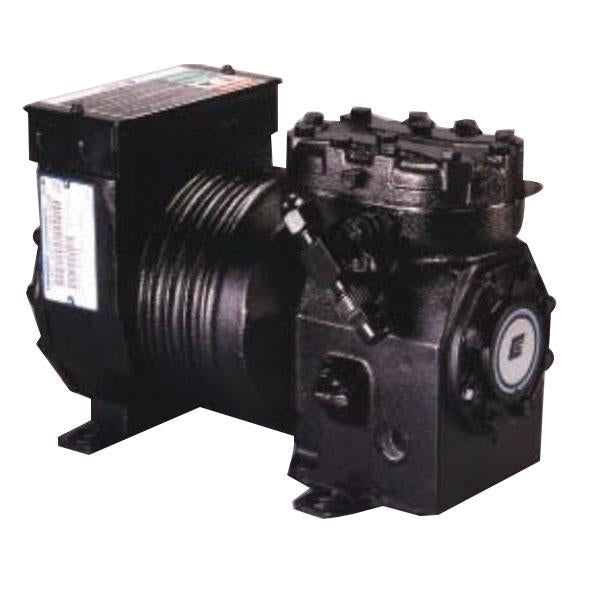

The A-1 Compressor KALA-015A-TAC-R is a semi-hermetic compressor suited for air compression in industrial settings. This unit operates effectively on a 208/230V power supply and is designed for three-phase applications. It ensures consistent performance while utilizing R-22 and HCFC refrigerants.

• Semi-hermetic compressor design
• Voltage: 208/230V, 3-phase
• Compatible with R-22 and HCFC refrigerants

Product Highlights

This compressor is ideal for various industrial applications, providing reliable operation and support for cooling systems.

Product Information

Standard Information

• Brand: A-1 Compressor
• MPN: KALA-015A-TAC-R

Technical Specifications

• Voltage Rating: 208/230 VAC
• Number of Phases: 3
• BTU Rating: 15800 Btu/hr
• CFM Rating: 3.08 cfm
• Compressor Oil: Alkylbenzene
• Dimensions: 14.38 in L x 9.5 in W x 10.44 in H
• Discharge Line Size: 1/2 in Flare
• EER Rating: 7.6 to 9.9
• Flow Rate: 139 to 249 lb/hr
• Power Rating: 1590 W, 1-1/2 hp
• Refrigerant Type: R-22, HCFC
• Series: KA
• Speed Rating: 3500 rpm
• Suction Line Size: 7/8 in Sweat
• Temperature Rating: 20 to 45 deg F Evaporator, 120 to 130 deg F Condensing, 65 deg F Return Gas, 120 to 130 deg F Liquid
• Tonnage: 1.5 ton
• Amperage Rating: 5.1 A
