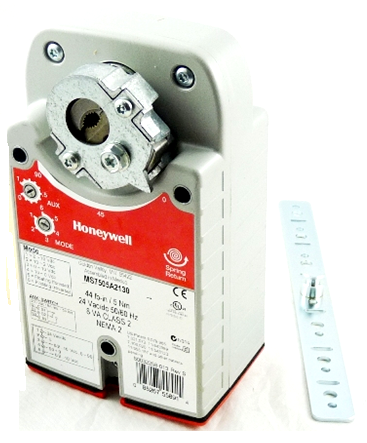

Honeywell MS7505A2130 Spring Return Direct Coupled Actuator, Replacement for MS7505A2008

Product Description

The Honeywell MS7505A2130 Spring Return Direct Coupled Actuator, a high-performance device suitable for HVAC systems, replaces the older model MS7505A2008. It's designed to drive a variety of quarter-turn final control elements that require fail-safe spring return operation.

• Equipped with a brushless DC submotor that features electronic stall protection.
• Compatibility with a range of control inputs such as two-position, floating, and proportional (0-2 to 10 Vdc).
• Incorporates a self-centering shaft adapter, suitable for a variety of shaft sizes.

Product Highlights

This actuator is designed for both ease of use and durability, featuring an accessible cover that simplifies wiring and setup. Its robust plastic housing includes mechanical end limits, enhancing its reliability.

Product Information

Standard Information

• Brand: Honeywell
• Model: MS7505A2130

Technical Specifications

• Torque: 44 lb-in, 5 Nm
• Spring Return Torque: 44 lb-in, 5 Nm
• Maximum Stall Torque: 105 lb-in, 12 Nm
• Voltage: 24 Vac/dc
• Protection Class: IP54
• Noise Level: Driving 40 dB, Holding 20 dB
• Fail Safe Mode: Spring Return
• : Floating
