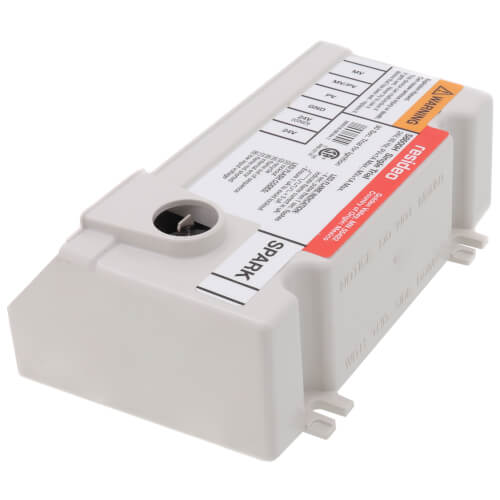

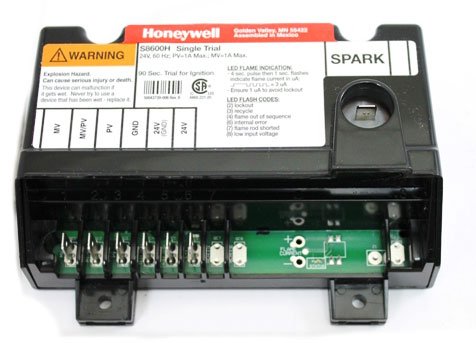

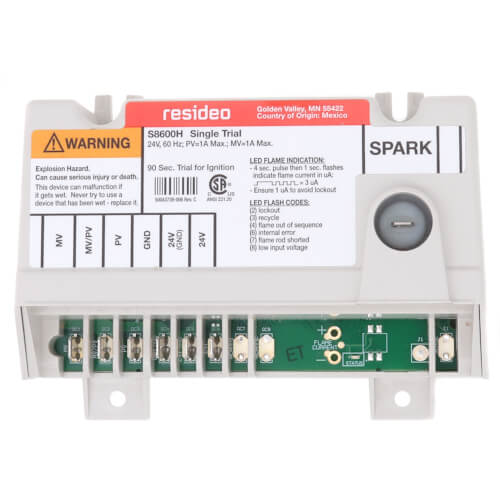

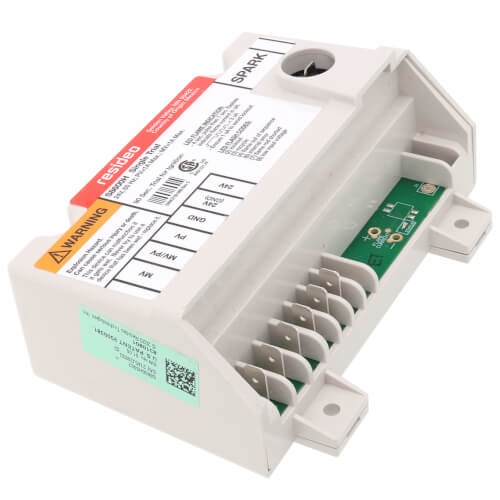

Honeywell S8600H3002 90 Sec. L.O Module - OEM Model

Product Description

The Honeywell S8600H3002 is an intermittent pilot control designed for use in various heating applications. It provides a ninety-second trial for ignition and includes a safety lockout feature. This module is suitable for natural and LP gas systems.

• Intermittent pilot control with safety shutoff.
• Provides one amp pilot and main valve current rating.
• Compatible with a range of ignition systems.

Product Highlights

This product is essential for reliable ignition sequences and monitoring in heating systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: S8600H3002

Technical Specifications

• Ignition System Type: Intermittent Pilot
• Ignition Sequence: Lockout
• Typical Gas Control: VR8204, VR8304
• Type of Gas: Natural or LP
• Flame Sense: Single Rod
• Ignition Source: Internal high voltage spark generator
• Ignition Trials to Lockout: 1
• Lockout Timing: 90 seconds
• Maximum Valve Load: 1A Pilot, 1A Main @ 24Vac
• Dimensions: 3 15/16 inches high x 5 7/16 inches wide x 2 5/8 inches deep
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Approvals, CSA: Design Certified
