Product Description

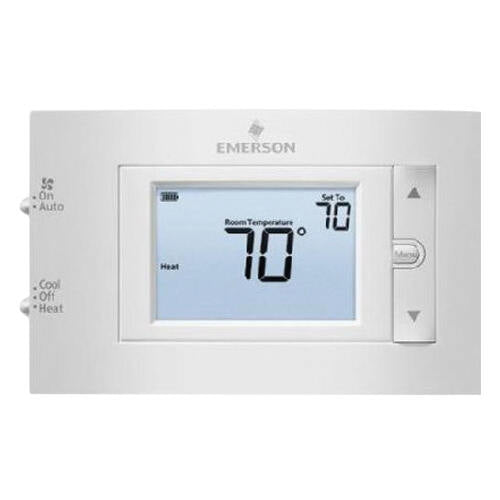

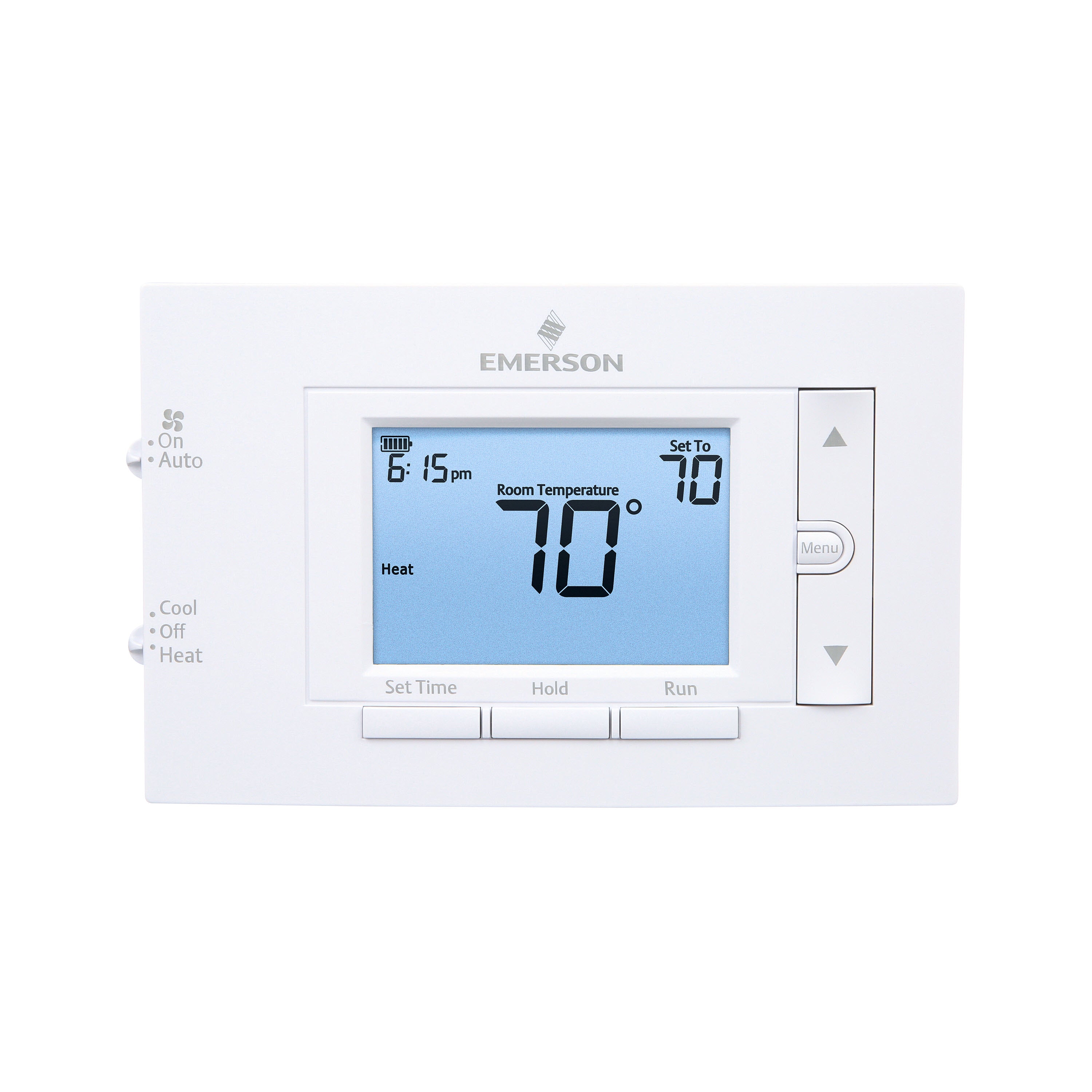

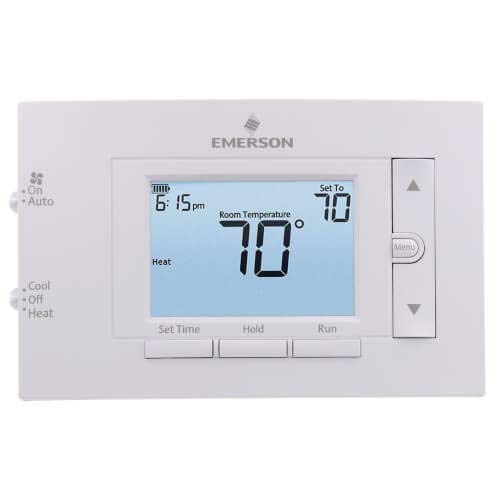

The WHITE-RODGERS 1F83C-11PR is a conventional universal digital thermostat with a control range of 45 to 99 degrees Fahrenheit. It features a bright, high contrast backlight and automatic heat or cool changeover options. This thermostat is compatible with gas, oil, and electric systems.
- Attractive sensi thermostat styling for non wifi application
- Bright, high contrast backlight
- Automatic heat or cool changeover options
Product Highlights
The White-Rodgers 1F83C-11PR thermostat offers precise temperature management for conventional heating systems. It features a user-friendly keypad interface and a 4.5" digital display.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 1F83C-11PR
-
Country of Origin: MX
Technical Specifications
-
MPN: 1F83C-11PR
-
Brand: WHITE-RODGERS
-
UPC: 786710551635
-
Stages: 1 Heat/1 Cool
-
Application: Single Stage (Heat/Cool)
-
Programmability: 7-Day
-
User Interface: Push Button
-
Mounting: Horizontal
-
Power Method: Hardwired Battery
-
Temperature Range (F): 45° to 99°F
-
Voltage: 24 V
-
Wiring: RH Rc WYGO/BC
-
Control Range: 45 to 99 deg F
-
Country of Origin: MX
-
Display Type: 4-1/2 sq-in Lighted
-
Domestic/Import: Import
-
Fan Switching: Auto
-
Mfg Standards/Approvals: NEC Class II
-
Number of Stages: 2
-
Power Source: Battery/Hardwired
-
Programs per Week: 7 or 5-1-1 Days
-
Stages Cool: 1
-
Stages Heat: 1
-
System Switching: Cool/Off/Heat
-

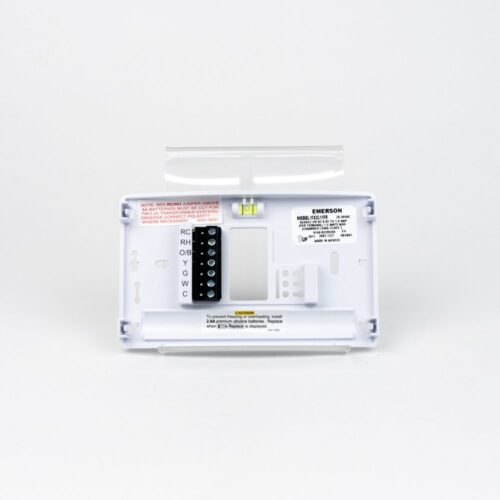

Terminal Designations: RC, RH, C, W, Y, O/B, G
-
Thermostat Type: Digital, Programmable/Non-Programmable
-
Type: Conventional
-
Voltage Rating: 20 to 30 VAC Hardwire
-
Warranty: 5 Years
-
Item Number: 1F83C-11PR
-
Program: 5+1+1
-
Touchscreen: No
-
Series-Brand: 80 Series Blue
-
Weight Unit: POUND
-
Temperature Range: 45 - 99 deg F
-
Display Temperature Range: 32 - 99 deg F
-
Programs Per Day: 4
-
Operating Ambient Temperature Range: 32 to 105 F
-
Operating Humidity: 90% non-condensing max
-
Setpoint Range: 45 to 99 Deg F
-
Changeover: Auto
-
Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan)
-
Differential Temperature: 0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Cooling, 0.9 deg F at 6 deg F/hr Fast, 1.2 deg F at 6 deg F/hr Medium, 1.7 deg F at 6 deg F/hr Slow Heating Pump (Heating and Cooling), 0.5 deg F at 6 deg F/hr Fast, 0.75 deg F at 6 deg F/hr Medium, 1.9 deg F at 6 deg F/hr Slow Heating Pump (Auxiliary)
-
Temperature Settings: 45 to 99 deg F
-
Temperature Rating: 32 to 105 deg F
-
Humidity Rating: 90% Non-Condensing
-
Accuracy: +/-1 deg C
-
Terminal Designation: RC, RH, C, W, Y, O/B, G
-
Termination: RC, RH, C, W, Y, O/B, G
