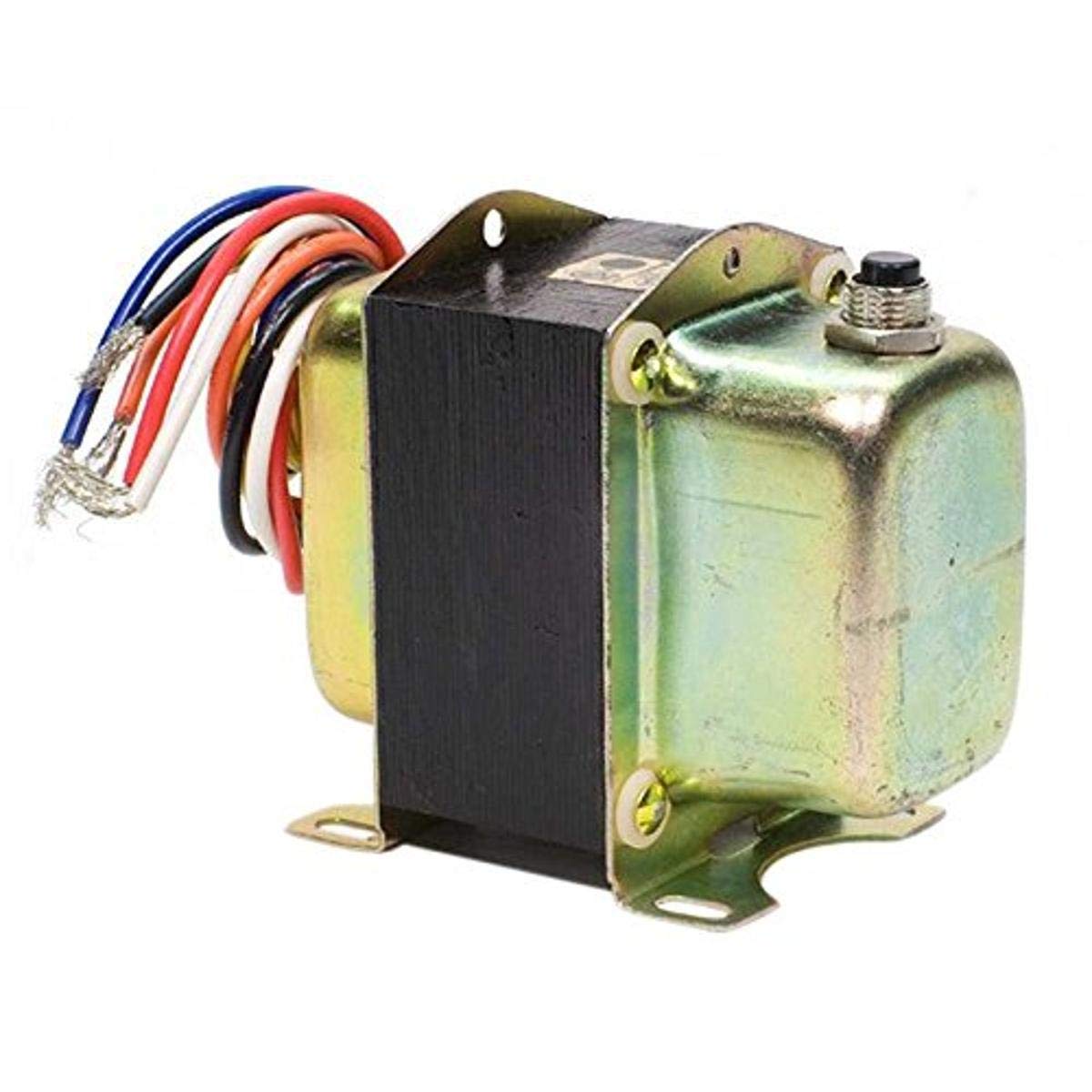

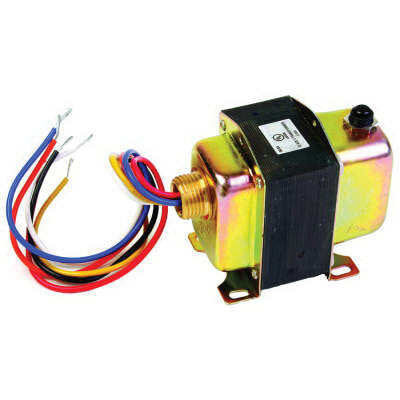

Honeywell AT175F1023 Power Transformer 75 VA Primary 120/208/240 VAC Secondary 24 VAC

Product Description

The Honeywell AT175F1023 is a robust power transformer designed to deliver reliable performance for typical electrical applications. This transformer is engineered to provide power to 24 VAC circuits, crucial in heating and cooling control systems. It is an essential component for professionals in the HVAC industry.

• Equipped with color-coded lead wires for straightforward primary connections.
• Features screw terminals for secure secondary connections.
• Complies with NEC Class 2 not wet, Class 3 wet requirements.

Product Highlights

This transformer can be mounted in multiple ways: foot, plate, clamp, or panel, offering versatile installation options. It supports 120/208/240 VAC on the primary and 24 VAC on the secondary side with a power rating of 75 VA.

Product Information

Technical Specifications

• Brand: Honeywell
• Model Number: AT175F1023
• Power Rating: 75 VA
• Primary Voltage: 120/208/240 VAC
• Secondary Voltage: 24 VAC
• Mounting Options: Universal - foot, plate, clamp, panel
• Connections: Color-coded leadwires, screw terminals
• Compliance: NEC Class 2, UL Listed, CSA Certified
• Dimensions: 3-3/16 in high x 2-3/16 in wide x 3-15/16 in deep
