Hoffman 401467 71C Hose Pipe Fitting for HVAC Systems

Product Description

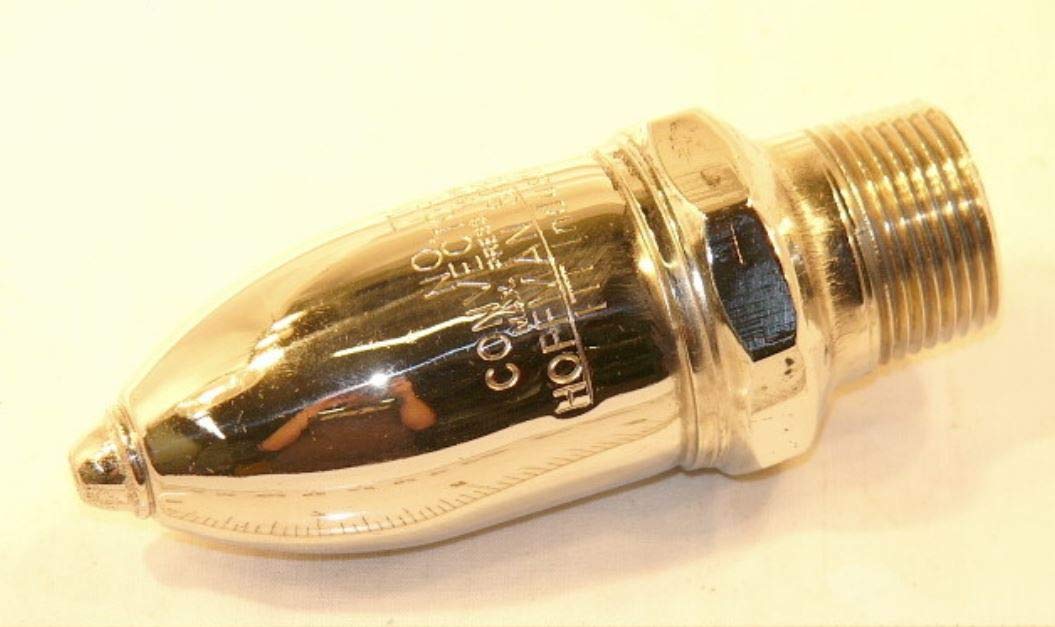

The Hoffman 401467 71C Straight Steam Convector Air Valve is an essential HVAC component designed for efficient air management in steam heating systems. Manufactured by Hoffman, this air valve ensures optimal performance and reliability.

• Enables precise steam release with its float-type vent mechanism.
• Constructed to handle pressures up to 15 psig, suitable for various heating applications.
• Features a straight pattern body configuration for easy installation in tight spaces.

Product Highlights

Designed for non-vacuum applications, the 71C model incorporates a single non-adjustable port and a telescopic siphon tube improving system efficiency. This air valve meets the rigorous Federal Specification WW-V-151 for Type 1, ensuring compliance and safety standards are met.

Product Information

Standard Information

• Body Pattern: Straight
• Application: Convector Vent

Technical Specifications

• Max Operating Pressure: 11 psig
• Thread Size: 1/2 inch NPT female, 3/4 inch NPT male
• Material: Steel
• Temperature Range: 140°F to 240°F
