Honeywell DM7600A1005 Electric Zone Damper 6 Diameter

Product Description

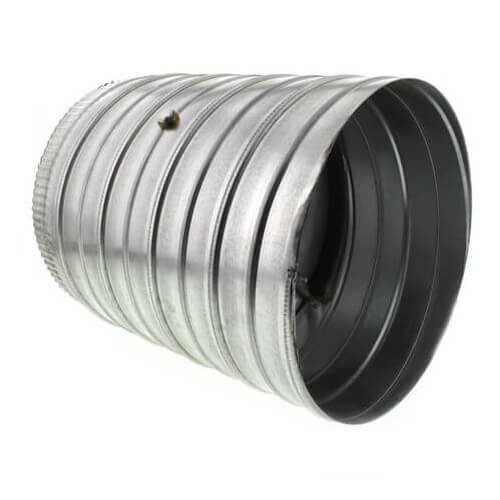

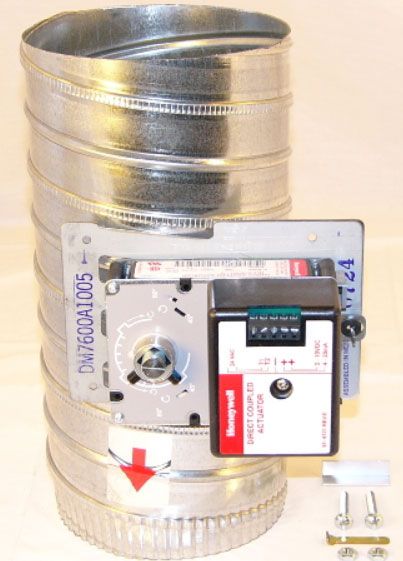

The Honeywell DM7600A1005 is an electric zone damper with a six-inch diameter. It uses a twenty-four volt ML7161A1000 motor and a ML7161A2008 actuator. This device is designed for use in zoning systems to help control airflow in round ducts. The damper features a timing mechanism that operates in ninety seconds and accepts a two to ten Vdc input signal.

• Built-in neoprene seal for effective closure and reduced leakage.
• Oilite bearings contribute to the unit’s long lifespan.
• Offers ninety-degree damper travel for versatile applications.

Product Highlights

The DM7600A1005 electric zone damper is suitable for commercial zoning systems. It can act as an individual zone damper controlled by a thermostat and also serve as a bypass damper managed by a duct static pressure controller.

Product Information

Standard Information

• Brand: Honeywell
• MPN: DM7600A1005

Technical Specifications

• Size: 6 inches
• Voltage: 24 Vac
• Temperature Range: 32 F to 130 F
• Maximum Approach Velocity: 2500 ft/min
• Application Types: heating, cooling, ventilating
• Actuator Type: ML7161A2008
• Control Signal Input: 2 to 10 Vdc or 4 to 20 mA
• Weight: 6 lbs
