Product Description

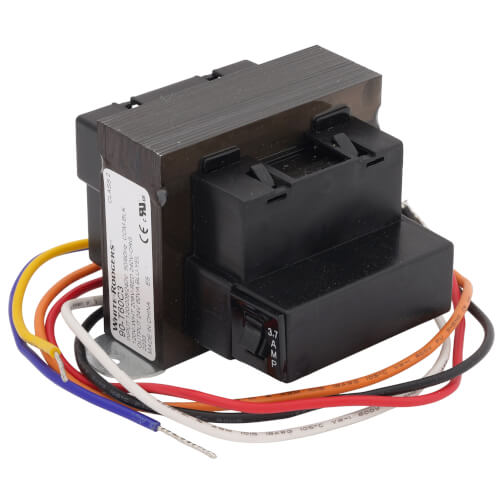

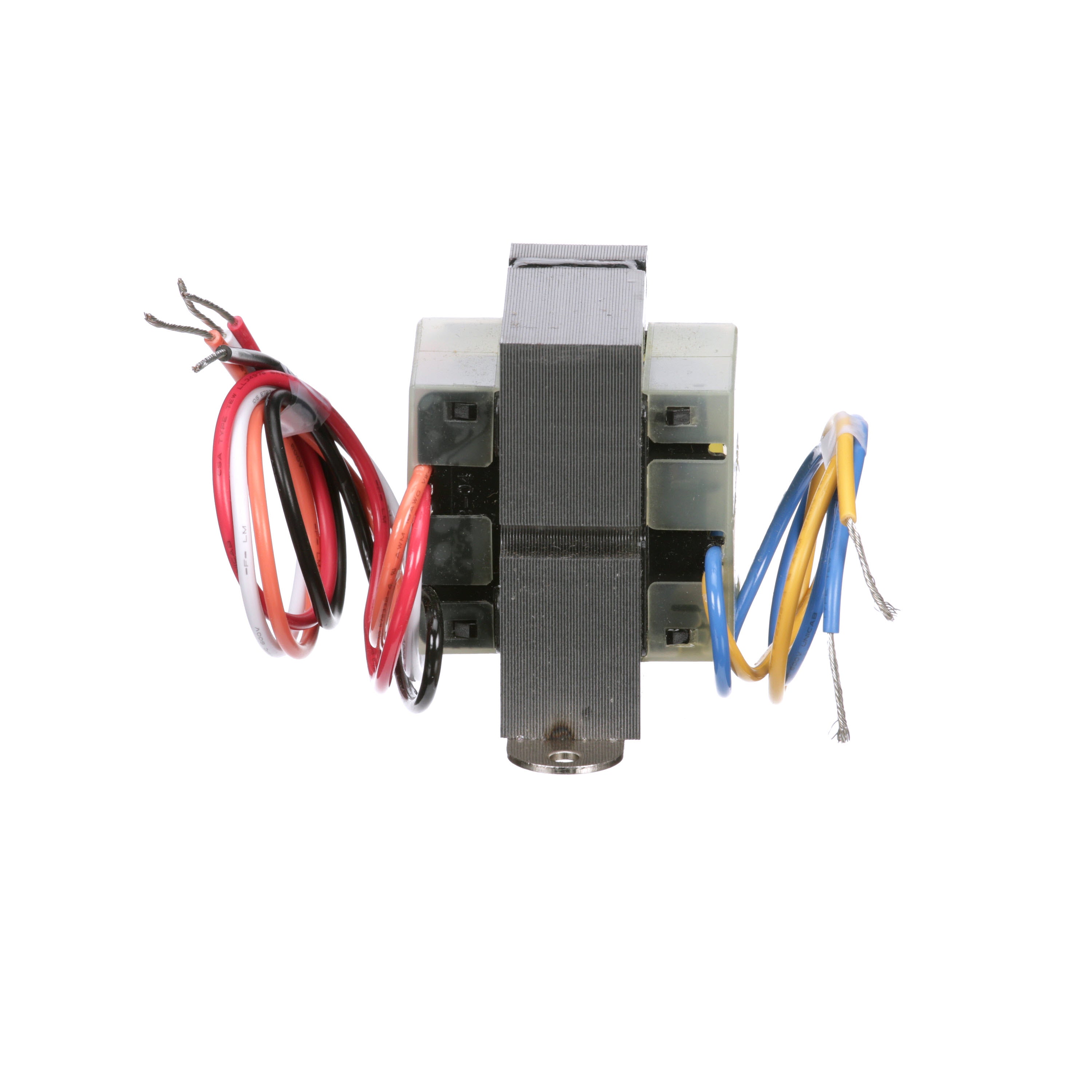

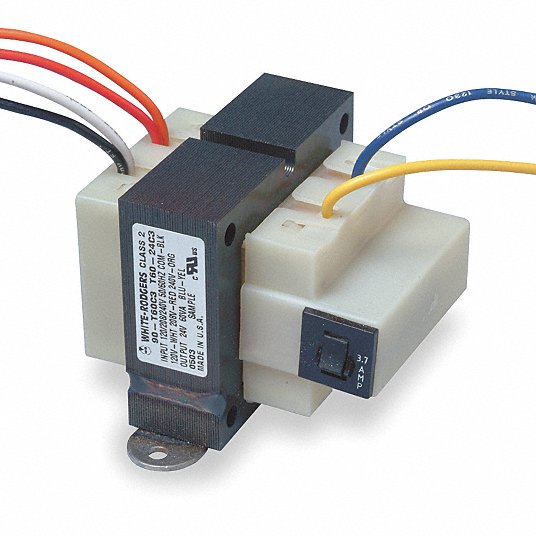

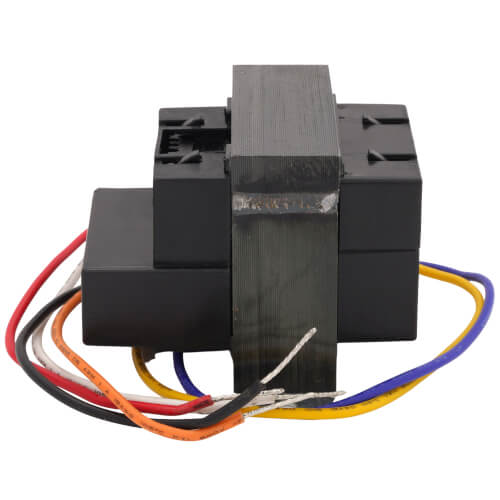

The White-Rodgers 90-T60C3 is a 24 Volt Secondary Energy Limiting Class 2 Transformer. This 60VA transformer is designed with a 120/208/240V primary voltage range and a 24V secondary voltage, and is suitable for industrial heating and air conditioning control applications. It features a foot mount for easy installation.
- Energy Limiting Class 2 Transformer
- Primary voltage: 120/208/240V, Secondary voltage: 24V
- Features foot mount and color-coded primary leads
Product Highlights
The White-Rodgers 90-T60C3 transformer ensures reliable and efficient voltage conversion. It is suitable for use on digital controllers, gas controls, ignition systems, motor actuators, staging controls, and most other HVACR control systems.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 90-T60C3
-
Country of Origin: China
Technical Specifications
-
Item Model Number: 90-T60C3
-
Part Number: 90-T60C3
-
Brand: White-Rodgers
-
Series: Class 2 Transformer
-
MPN: 90-T60C3
-
Item Number: 90-T60C3
-
Primary Voltage: 120/208/240V
-
Secondary Voltage: 24V
-
Frequency: 50/60Hz
-
Vendor: White-Rodgers
-
MfgNum: 90-T60C3
-
Main Category: HVAC
-
Category: Controls
-
SubCat: Transformers
-
ItemNum: 90-T60C3
-
Hz [Specifications]: 50/60
-
Item [Specifications]: Class 2 Transformer
-
Depth [Specifications]: 3.25 in
-
Phase [Specifications]: 1
-
Width [Specifications]: 4 in
-
Height [Specifications]: 2.62 in
-
Mounting: Foot
-
Standards [Specifications]: cURus File Number E33334
-
VA Rating: 60
-
Temp. Rise [Specifications]: 85 Degrees C
-
Input Voltage: 120/208/240VAC
-
Enclosure Type [Specifications]: Open
-
Output Voltage: 24VAC
-
Hz - Electrical [Specifications]: 50 Hz, 60 Hz
-
Protective Device [Specifications]: Circuit Breaker
-
Item - Transformer [Specifications]: Class 2 Transformer
-
Phase - Electrical [Specifications]: 1
-
Primary Connection [Specifications]: 11 in Leads
-
Secondary Connection [Specifications]: 11 in Leads
-
Mounting - Transformer [Specifications]: Foot
-
VA Rating - Transformer [Specifications]: 60 VA
-
Input Voltage - Transformer [Specifications]: 120V AC, 208V AC, 240V AC
-
Output Voltage - Transformer [Specifications]: 24V AC
-
Enclosure Style - Transformer [Specifications]: Open
-
Country of Origin (subject to change) [Specifications]: China
-
Manufacturer: White-Rodgers
-
Item model number: 90-T60C3
-
Item Package Quantity: 1
-
Application: For industrial, heating and air conditioning controls applications
-
Protection: Overload and short circuit protection with extended secondary short circuits that cause primary winding to open, minimizing fire hazards
-
Transformer Class: Class 2 energy limiting transformer
-
Leads: Color-coded primary leads
-
Secondary: 24V
-
Primary: 120V, 208V or 240V, 60VA, at 50Hz or 60Hz
-
Product Type: TRANSFORMER
-
Model / MPN: 90-T60C3
-
Number of Items: 1.0
-
Voltage (Primary): 208V, 240V, 120V
-
Voltage (Secondary): 24v
-
Hertz: 60, 50
-
Mount: Foot
-
Electric Connection: Leadwires
-
Product Category: Thermostats and Controls
-
Warranty: 1 Year
-
Power Source: Corded Electric
-
Mounting Type: Foot Mount
-
Specification Met: CSA, ETL, UL
-
Connection - Primary: Wire Lead
-
Connection - Secondary: Wire Lead
-
Phase: Single
-
Power Rating: 60 VA
-
Standards: UL Recognized File No. E33334
-
Temperature Rise: 185 °F
-
Model: White-Rodgers 90-T60C3
