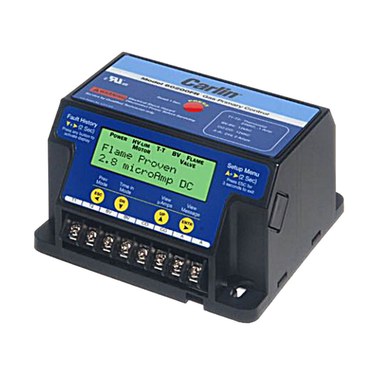

Carlin 60200FRS Flame Rod Gas Burner Primary Control with LCD Screen Replacement for 6020002FRS

Product Description

The Carlin 60200FRS Flame Rod Gas Burner Primary Control is designed for use with EZ-Gas, EZ-Gas Pro, and 201GAS burners. Featuring an LCD screen, this control unit offers easy-to-read icons for inputs and outputs, displaying crucial operational info. It includes various field-settable timings and fault history tracking to assist technicians.

• On-board LCD screen
• Easy-to-understand icons
• Fault history records

Product Highlights

This gas burner control replaces multiple models, including the Carlin 6020002FRS, 602000FRS, 60200-02FR, 6020002FR, and 602002FR363S. It features an on-board LCD screen for straightforward troubleshooting and operational insights.

Product Information

Standard Information

• Brand: Carlin
• MPN: 60200FRS
• UPC: 086764279623
• Manufacturer: Carlin

Technical Specifications

• Power input: 24VAC/DC, 120VAC, 60HZ
• Motor load: 10 FLA / 60 LRA
• Ignitor load: 500 VA
• Valve load: 2 amps
• Operating temperature limits: 32°F to 140°F
• Storage temperature limits: -40°F to 185°F
• Thermostat: 24VAC, 0.1A
• Blocked vent: 12VDC, 2mA
• CO input: 12VDC, 2mA
