Carlin 6020002S 120V CAD Cell Oil Primary Control 15-second, 30-second TFI

Product Description

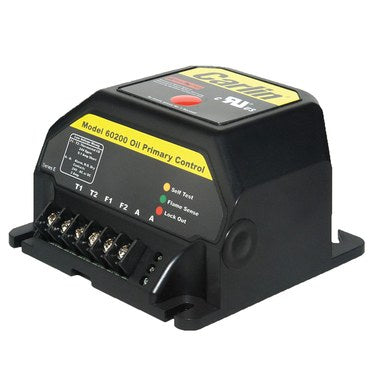

The Carlin 6020002S 120V CAD Cell Oil Primary Control regulates oil burners and monitors flame quality. It operates on 120V and provides 15-second and 30-second trial for ignition (TFI) settings. Widely used in HVAC systems to ensure proper burner operation.

• Controls oil primary ignition.
• Operates on 120V power supply.
• CAD Cell technology ensures reliable performance.

Product Highlights

This control module provides reliable flame monitoring and control for oil burners. It includes built-in diagnostic LEDs and reset protections. It is compatible with various thermostats and aquastats, making it versatile for multiple HVAC applications.

Product Information

Standard Information

• Brand: Carlin
• MPN: 6020002S
• Category: HVAC Equipment

Technical Specifications

• Power Input (Red/White Wire): 120 vac, 60 Hz, 9 VA
• Motor Load: 10 FLA, 60 LRA
• Ignitor Load: 120 vac, 60 Hz, 500 VA
• Valve Load: 120 vac, 60 Hz, 0.3 Amps
• Alarm Contacts: 24 V, AC/DC, 2 Amps
• Operating Temperature Limits: 32℉ to 140℉
• Storage Temperature Limits: -40℉ to 185℉
• Thermostat Anticipator Current: 0.2 A, AC
• Flame Failure Response Time: 1.3 seconds
