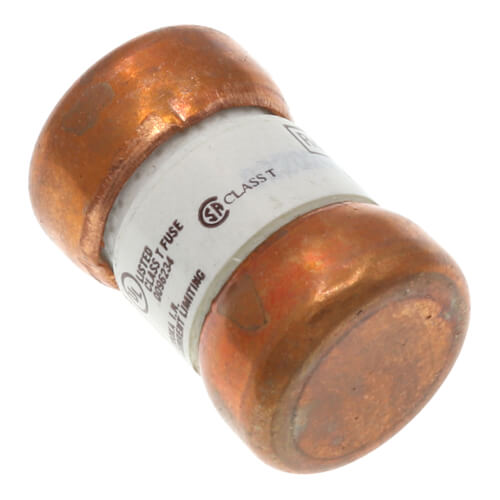

Littelfuse JLLN060 60A 300V Class T Fast-Acting Fuse

Product Description

The Littelfuse JLLN060 is a compact Class T fast-acting fuse, offering high performance in a space-saving design. Ideal for heavy commercial and industrial applications, it provides reliable short-circuit protection across both 300V AC and 125V DC circuits.

• Rated for 60A with a high interrupt rating of 200,000 Amp VAC RMS symmetrical.
• Designed for both non-inductive and inductive circuits.
• Less than one-third the size of comparable Class R fuses.

Product Highlights

This Class T fuse is engineered to act quickly during overcurrent situations, effectively preventing damage to connected devices and ensuring operational continuity.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: JLLN060

Technical Specifications

• Voltage Rating (AC): 300 VAC
• Voltage Rating (DC): 125 VDC
• Interrupt Rating: 200,000 Amp VAC RMS Symmetrical / 20,000 Amp VDC
• Body Style: Cartridge
• Dimensions: Diameter 9/16 in, Length 7/8 in
