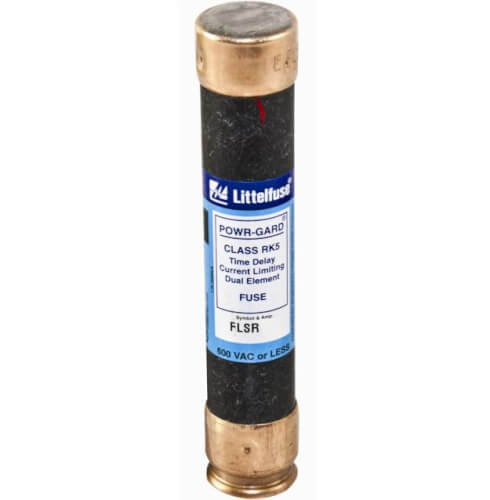

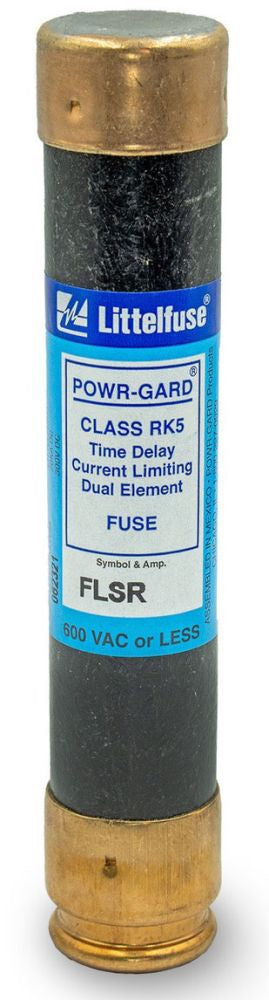

Littelfuse FLSR060 Fuse 600V 60A Time-Delay Class RK5 Dual-Element

Product Description

The Littelfuse FLSR060 is a time-delay fuse featuring a current rating of 60 amps and a voltage rating of 600 volts AC and 300 volts DC. It belongs to the FLSR series, offering reliable protection in industrial and commercial applications.

• Current rating: 60 amps
• Voltage rating: 600 volts AC / 300 volts DC
• Time-delay feature

Product Highlights

This fuse is designed for use in service entrance switches, transformers, switchboard mains, motor control centers, individual motor controllers, and general-purpose circuits.

Product Information

Standard Information

• Brand: Littelfuse
• Sub Brand: POWR-GARD FLSR Series
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 60A
• Application: General Purpose
• Body Size: 1-1/16 in Dia x 5-1/2 in L
• Body Type: Cylindrical
• Class: RK5
• Element: Dual
• Frequency Rating: 50/60 Hz
• Indicating / Non-Indicating: Non-Indicating
• Manufacturer Part Number: FLSR060
• Material: Composite
• Mounting Type: Holder
• Rejection / Non-Rejection: Rejection
• Response Time: 10 s
• Series: FLSR
• Short Circuit Current Rating: 3800 A
• Standards/Approvals: UL 248-12, CSA, Federal Specification WF-1814, PROP65
• Terminal Type: Ferrule
• Type: Current Limiting
• Voltage Rating: 600 VAC / 300 VDC
