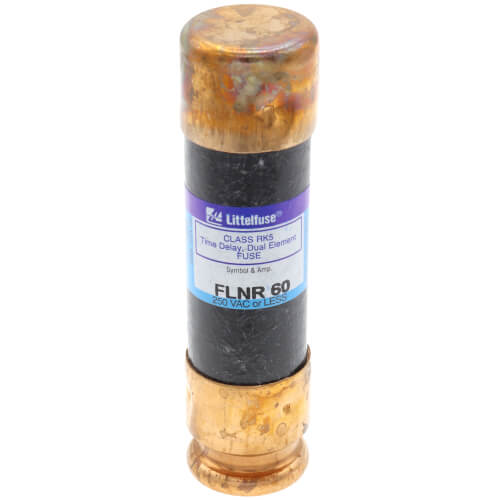

Littelfuse FLNR060 Fuse 250V 60 Amp Time Delay

Product Description

The Littelfuse FLNR060 is a Class RK5 dual-element time-delay fuse, designed for superior performance in protecting electrical circuits. It operates at 250 volts and has a 60 amp current rating, making it suitable for a range of industrial and commercial applications.

• Enhanced time-delay feature to minimize nuisance tripping.
• Dual-element design for better protection against short circuits and overloads.
• UL Listed and CSA Certified for safety and reliability.

Product Highlights

This fuse is widely recognized for its reliability and efficiency in circuit protection, supported by an interrupting rating of 200 kiloamperes at 250 volts AC and 20 kiloamperes at 125 volts DC. It fits standard rejection-style fuse blocks and is crafted from high-quality fiberglass, ensuring durability even in challenging environments. Its cylindrical body measures three inches in length and 13/16 inches in diameter.

Technical Specifications

• Ampere Rating: 60 Amp
• Voltage: 250 VAC / 125 VDC
• Interrupting Rating: 200kA at 250VAC, 20kA at 125VDC
• Fuse Size: 3 in L x 13/16 in dia
• Body Material: Fiberglass
• Element: Dual
• Rejection/Non-Rejection: Rejection
