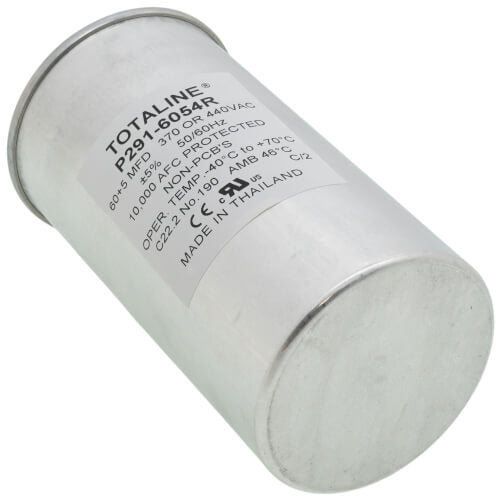

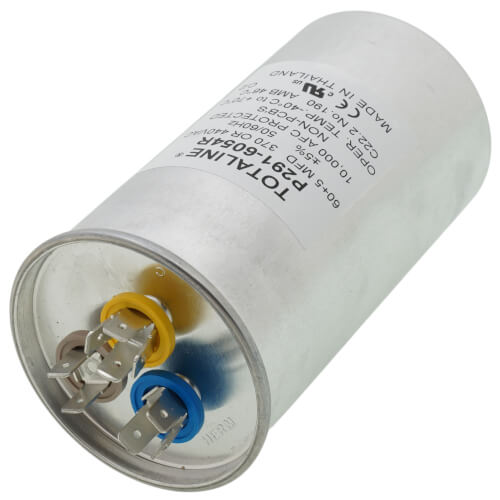

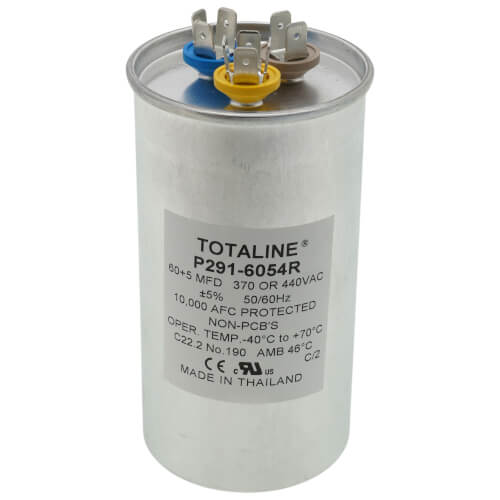

Carrier P291-6054R Run Capacitor 440V 60/5 MFD Dual Round

Product Description

The Carrier P291-6054R run capacitor is designed for optimal efficiency and reliability in various HVAC systems. This dual round capacitor supports 440 volts and offers a dual capacitance of 60/5 MFD, making it suitable for continuous operation across various temperatures.

• Proven reliability with a test duration up to 60,000 service hours.
• High-grade metallized Polypropylene Film enhances performance.
• UL approved with a robust safety feature including a patented Pressure Sensitive Interrupter.

Product Highlights

This OEM-approved run capacitor is engineered to support both fan and compressor functions in HVAC systems. Its construction features aluminum casing for extra durability and efficient performance under varying electrical conditions. The unit is also RoHS compliant, ensuring safety and environmental standards are met.

Product Information

Standard Information

• Capacitance Range: 60/5 MFD
• Rated Voltage: 440 VAC

Technical Specifications

• Brand: Carrier
• Type: Dual
• Shape: Round
• Temperature Range: -40 to 70 degrees Celsius
• Terminal Designations: 0.250 inch x 0.032 inch QC male tabs
• Certifications: UL Approved, RoHS Compliant
• Country of Origin: China
• Dimensions: Height: 4.7 inches, Width: 2.5 inches, Length: 2.5 inches
