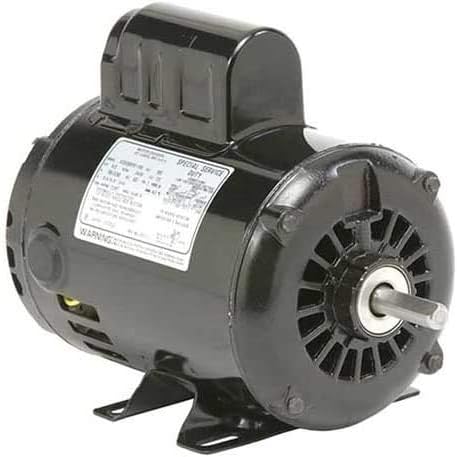

Nidec D5CM1K14 Air Compressor Motor 5 HP 208-230V 56HZ Frame

Product Description

The Nidec-US Motors D5CM1K14 is a high-performance air compressor motor designed to meet the needs of demanding industrial applications. This motor features a 5 horsepower rating and operates at a speed of 3450 RPM.

• 5 horsepower capacity for high power output
• 208-230V voltage range for flexibility
• 3450 RPM speed for efficient operation

Product Highlights

The Nidec-US Motors D5CM1K14 is built for reliability and durability. It has an open drip-proof (ODP) enclosure that protects it from dust and moisture, and it uses a manual thermal protection system to prevent overheating.

Product Information

Standard Information

• Brand: Nidec-US Motors
• MPN: D5CM1K14

Technical Specifications

• Horsepower: 5 hp
• Voltage: 208-230 Volts
• Speed: 3450 RPM
• Frame: 56HZ
• Enclosure: Open Drip Proof (ODP)
• Shaft Diameter: 7/8 inches
• Shaft Length: 2 3/8 inches
• Maximum Ambient Temperature: 104 Degrees Fahrenheit
• Insulation Class: F
• Mounting: Rigid Base
• Thermal Protection: Manual
• Service Factor: 1
