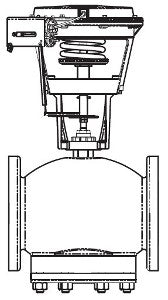

Schneider Electric VK-8213-602-5-15 Valve Actuator Assembly 5 in Globe

Product Description

Schneider Electric VK-8213-602-5-15 is a valve actuator assembly designed for precise control in various applications. The assembly features a five-inch globe valve, offering efficient flow regulation. This product is ideal for industrial and commercial HVAC, plumbing, and process control environments.

• Body Size: 5 inches
• Connection Type: Flanged
• Material: Brass trim with cast iron body

Product Highlights

The VK-8213-602-5-15 valve actuator assembly allows smooth and controlled operation, ensuring reliable performance in critical applications. It is suitable for various fluids and can handle temperatures ranging between negative seven to one hundred thirty-eight degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Flow Coefficient: 240 cv
• Close-Off Pressure: 125 PSI
• Actuator Type: Pneumatic
• Control Signal: Proportional
• Control Spring Range: 5 to 10 PSIG
• Loss of Power Position: Normally open
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Ambient Air Temperature for Operation: -28.8 to 104.4 degrees Celsius
• Ambient Air Temperature for Storage: -40 to 104.4 degrees Celsius
• Seating Seal Material: Brass
• Diaphragm Effective Area: 50 in²
