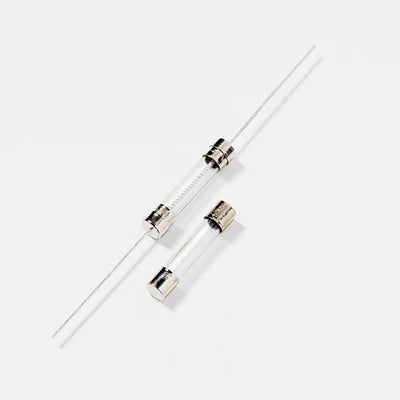

LITTELFUSE 313005P SLO-BLO 3AG TYPE GLASS FUSE 5 AMP 250 VAC

Product Description

The Littelfuse 313005P is a reliable Slo-Blo 3AG type glass fuse designed for effective circuit protection. With a 5 amp and 250 VAC rating, this fuse is engineered to handle inductive loads effectively, ensuring safety and ongoing system integrity.

• Superior protection for motors, transformers, and solenoids.

• Smart indication technology reveals discoloration upon fuse activation.

• Minimizes downtime by negating the need for extensive circuit testing.

Product Highlights

This ceramic fuse offers consistent performance and is suited for various applications including power distribution and control systems. It features a time-delay characteristic that excels in overload protection.

Product Information

Standard Information

• Brand: Littelfuse

• Series: 313

Technical Specifications

• Type: Slo-Blo

• Amperage: 5 Amp

• Voltage: 250 VAC

• Interrupting Rating: 10 kA at 125 VAC

• Body Material: Glass

• Terminal Type: Axial Lead

• Response Time: 4 hr to 5 - 30 sec range depending on condition

• Operating Temperature: -55 to 125 degrees Celsius

• Quantity: 5
