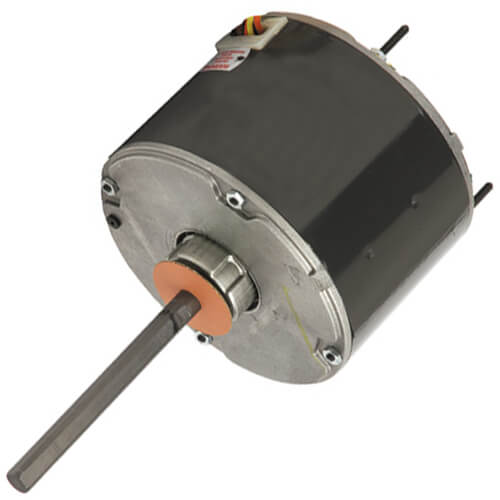

US Motors 1871 1/10hp 825rpm 208-230V Permanent Split Capacitor Condenser Fan Motor

Product Description

The US Motors 1871 is a permanent split capacitor condenser fan motor designed for reliable performance. This motor operates on 208-230 volts and has a horsepower rating of 1/10. The optimal speed is 825 RPM, making it suitable for various HVAC applications.

• Compatible with 370V capacitors.
• Reversible rotation for flexible installation.
• Equipped with a thermal overload protector.

Product Highlights

This motor is ideal for both residential and commercial use in condensing units, ensuring compliance with manufacturer requirements.

Product Information

Standard Information

• Brand: US Motors
• Manufacturer: Nidec Motor Corporation

Technical Specifications

• MPN: 1871
• Horsepower: 1/10 HP
• Voltage: 208-230 V
• RPM: 825
• Frame Size: 48Y
• Phase: 1
• Amperage: 1 A
• Enclosure Type: Totally Enclosed Air Over
• Mounting Type: Footed
• Service Factor: 1
• Dimensions: 5.6 inches body diameter, 1/2 inches shaft diameter
