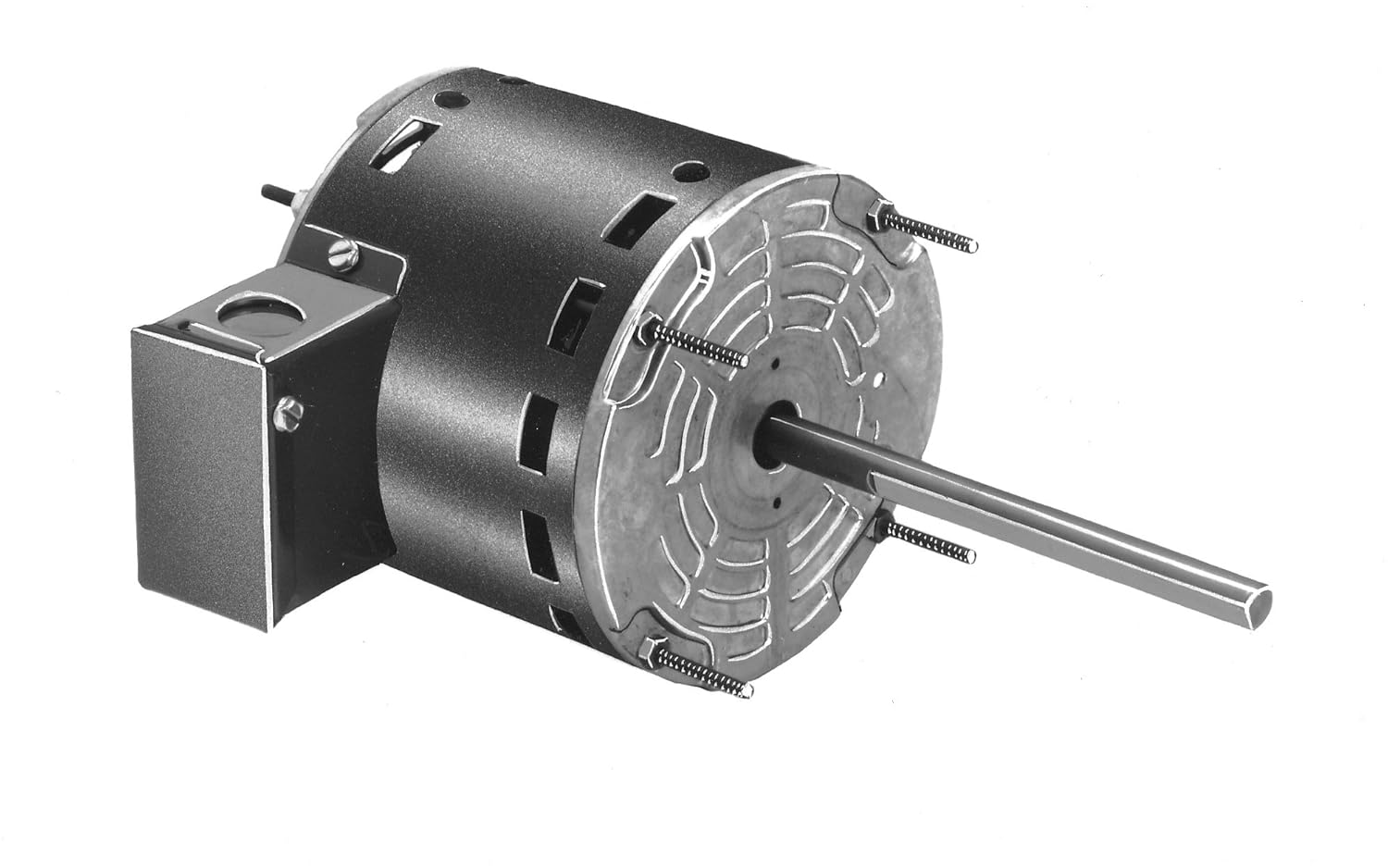

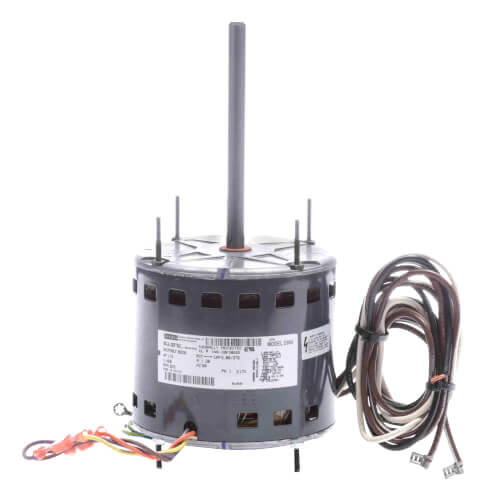

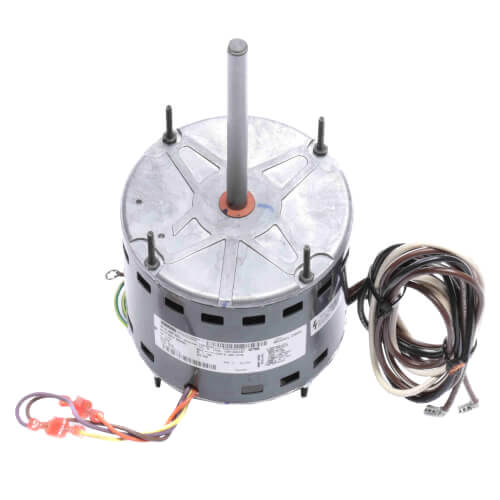

Fasco D960 1/3 HP Condenser Fan Motor 825 RPM 460V

Product Description

The Fasco D960 condenser fan motor is a durable and efficient component for HVAC systems. This motor is a permanent split capacitor (PSC) with a reversible rotation and open ventilated enclosure. It operates at 825 RPM and has a horsepower rating of 1/3 HP, making it suitable for various commercial and industrial applications.

• Thermally protected
• UL recognized, CSA certified
• Reversible rotation

Product Highlights

The Fasco D960 motor features a robust construction with rolled steel material and ball bearings, ensuring long-lasting performance. The thermally protected design and single-phase operation provide reliable functionality in various environmental conditions.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Brand: Fasco
• Model: D960
• Number of Items: 1
• Package Quantity: 1

Technical Specifications

• Horsepower: 1/3 hp
• Speed: 825 RPM
• Voltage: 460 Volts
• Amperage: 1.3 Amps
• Frame Size: 5.6 inches
• Shaft Diameter: 0.5 inches
• Shaft Length: 6 inches
• Insulation Class: B
