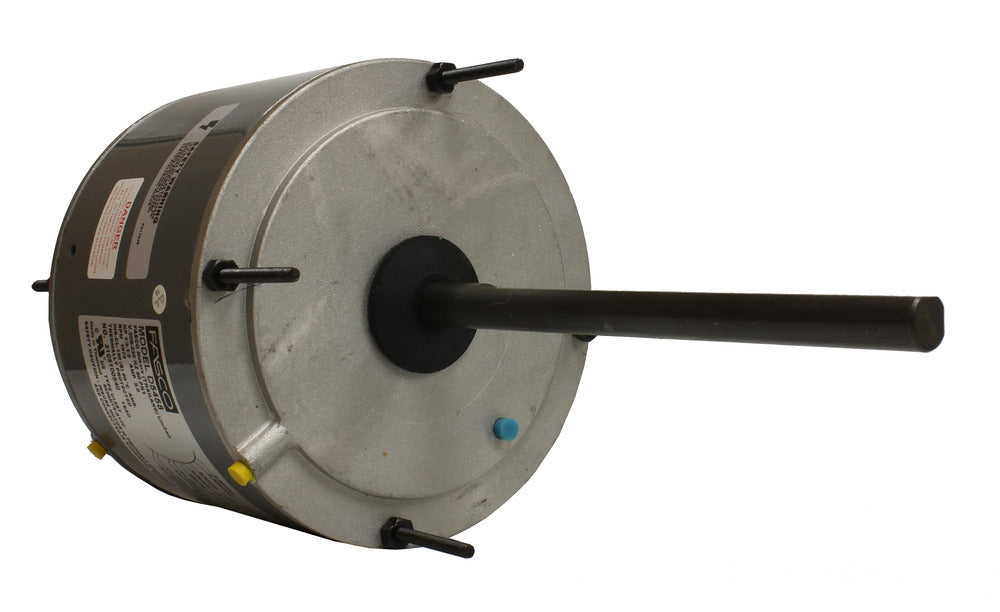

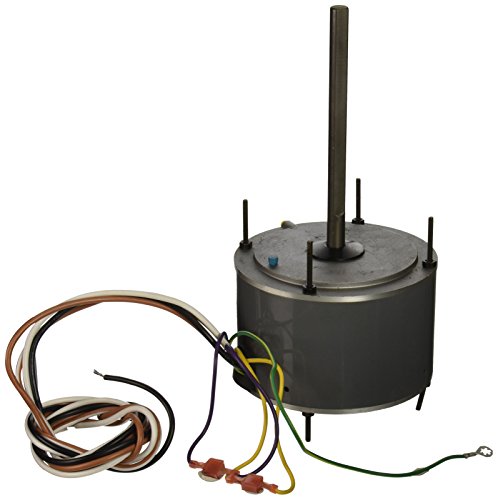

Fasco D5459 Condenser Fan Motor 1/6-1/8HP 208-230V

Product Description

The Fasco D5459 Condenser Fan Motor is an O.E.M. authorized part, designed for various Fasco models. This motor operates at 1/6 to 1/8 horsepower and uses 208-230 volts. It is manufactured in the United States.

• OEM Part Number D5459
• Fits various Fasco models
• O.E.M. authorized part

Product Highlights

This motor is a key part for HVAC systems, ensuring efficient and reliable operation. Use it to replace worn-out motors in condensers.

Product Information

Standard Information

• Brand: Fasco
• MPN: D5459
• Country of Origin: United States

Technical Specifications

• Electrical Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/6-1/8 HP
• RPM: 1075
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: Totally Enclosed Air Over
• Phase: Single
• Voltage: 208-230
• Rotation: Reversible
• Overload Protection: Automatic
• Material: Rolled Steel
• Mounting: Extended Studs
• Amperage: 0.94
• Shaft Type: Double Flat
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6.7 inches
• Bearing Type: Sleeve
• Ambient Temperature: 60°C
• Insulation Class: B
• Frequency: 60 Hz
• Poles: 6
• Service Factor: 1
