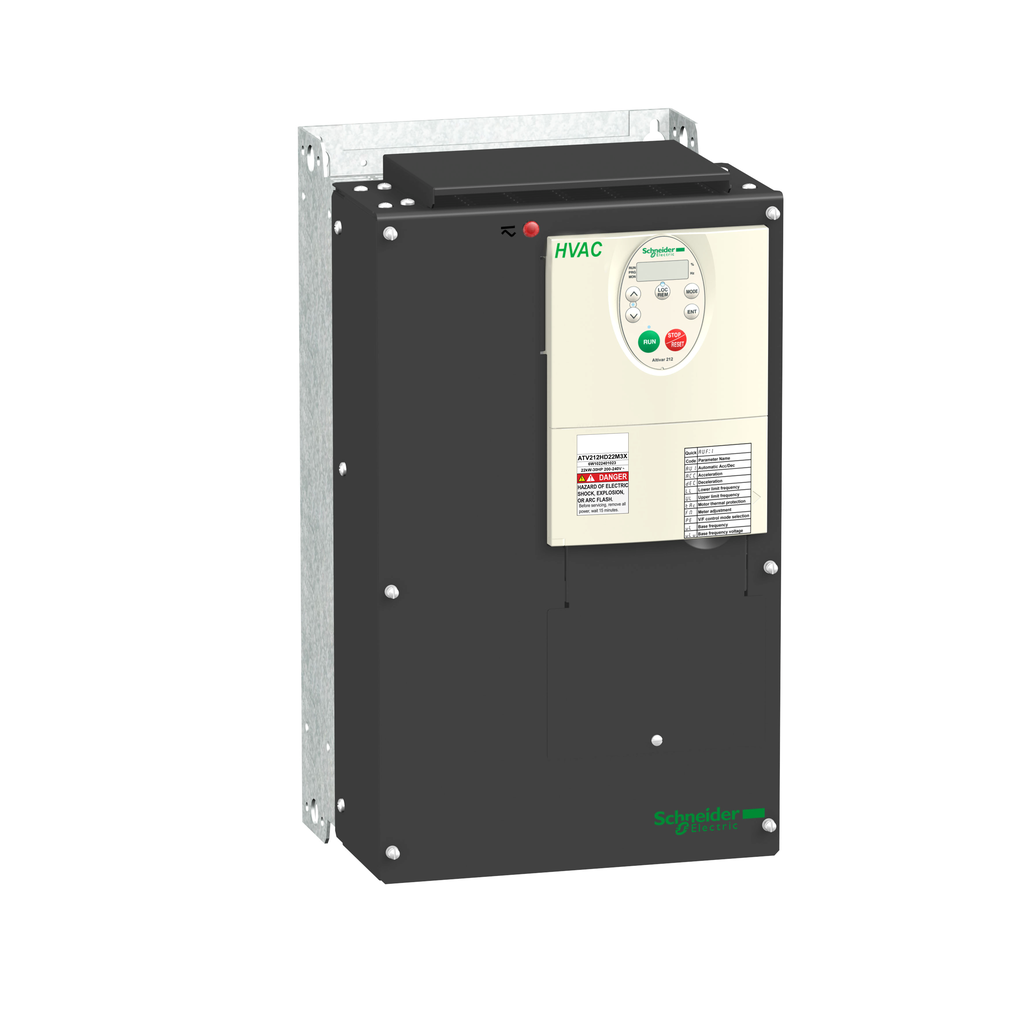

Schneider Electric ATV212HD22N4 Variable Frequency Drive 460V 3-Phase 30 HP

Product Description

The Schneider Electric ATV212HD22N4 Variable Frequency Drive (VFD) is a versatile solution for controlling 3-phase asynchronous motors. Known for its efficiency and reliability, this VFD operates within a voltage range of 380V to 480V AC and delivers a maximum power output of 30 HP.

• 3-phase asynchronous motor compatibility
• Built-in EMC filter
• IP21 protection index

Product Highlights

Designed to optimize energy consumption, the ATV212HD22N4 VFD can reduce energy use by up to 70 percent compared to conventional systems. It is suitable for various fluid management applications in HVAC systems, including heating, ventilation, air conditioning, and pumping. The drive's notable features include cable temperature rise reduction technology and minimal disturbance operation, eliminating the need for additional options like line chokes or DC chokes.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: ATV212HD22N4
• Manufacturer: Schneider Electric (Square D)
• Country of Origin: China

Technical Specifications

• Power Rating: 30 HP
• Voltage: 380V to 480V AC
• Current: 43.5 A
• Frequency: 50/60 Hz
• Protection: IP21
• Weight: 26.4 kg
• Dimensions: 8.43 inches wide, 16.54 inches high, 8.5 inches deep
• Certifications: CE, UL, CSA, C-Tick, NOM
• Compliance: IEC/EN 61800-5-1, IEC/EN 61800-3
• Enclosure: Open Type
• Display: LED
• Control Type: Keypad, Logic Input
• Application: HVAC systems, compressors, pumps, fans
• Storage Temperature: -25 to 70 degrees C
• Warranty: 18 months
• GTIN: 03606480322549
• UPC: 785901921479
