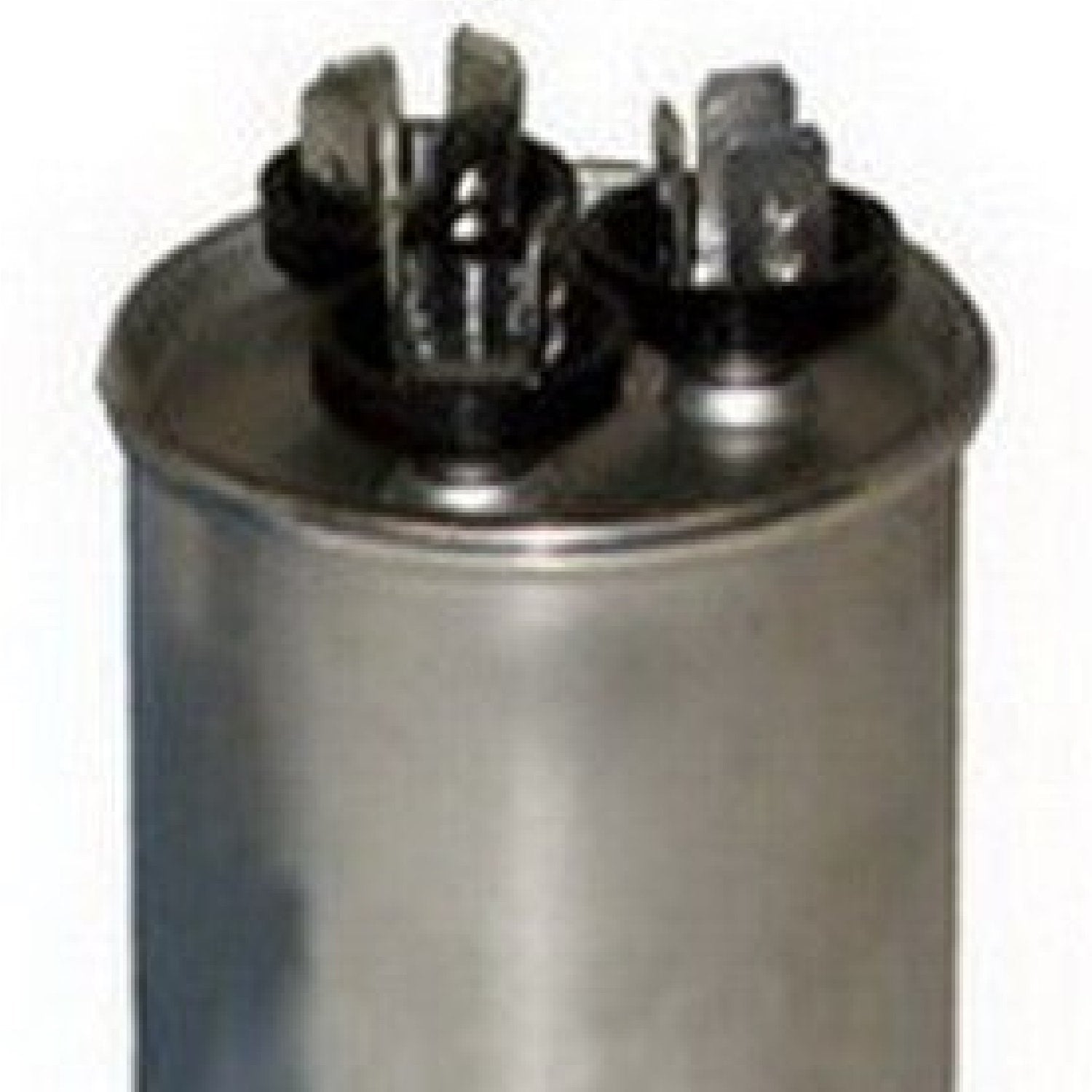

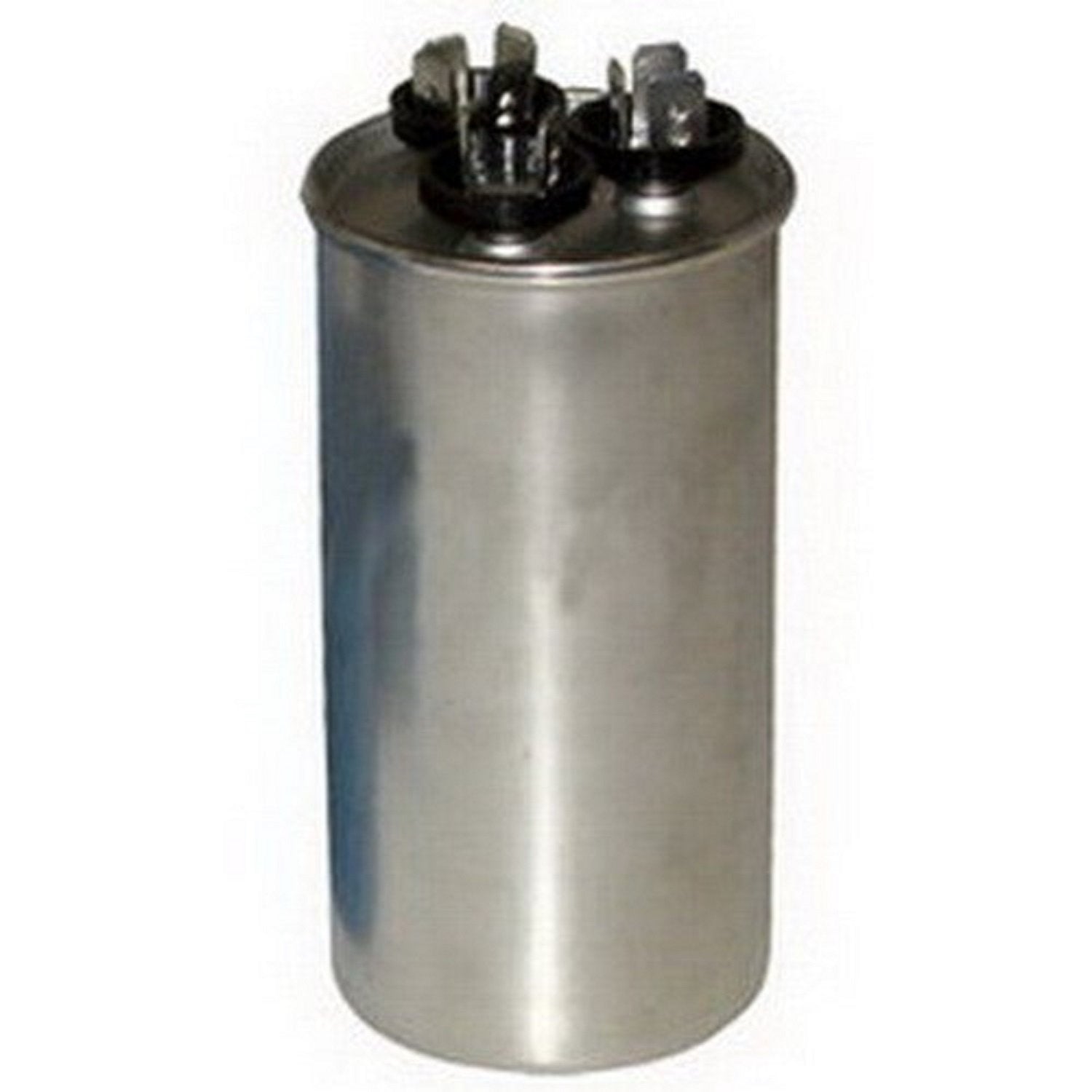

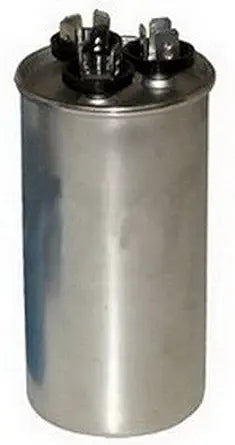

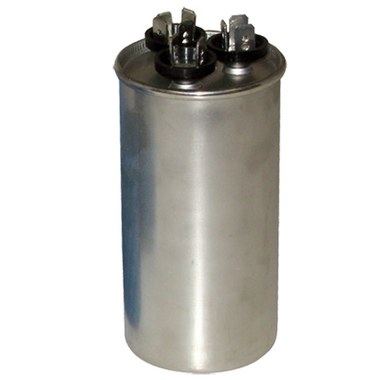

Mars 12289 45/7.5 MFD 440V Round Capacitor

Product Description

The MARS 12289 is a dual section motor run capacitor used primarily to serve two microfarad applications. By making various combinations of parallel connections, it can be used to obtain many other microfarad ratings. It is perfect for general replacements with the smallest dimensions available.

• Widest selections of ratings in the industry
• Non-PCB capacitors
• Physical interrupter makes our capacitors safe

Product Highlights

This dual section run capacitor is ideal for various microfarad applications, offering flexibility through parallel connections.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: 12289
• Country of Origin: MEX

Technical Specifications

• Capacitor MFD µF: 45/7.5
• Capacitor Type: Run
• Composition: Aluminum
• Cycle/Hertz: 50/60 Hz
• Diameter: 2.5"
• Height: 4-3/8 in
• Shape: Round
• Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Type: Dual Run Capacitor
• Voltage: 370/440 VAC
• UL Listed: Yes
• UL Recognized: Yes
• Brand: MARS
• Prop 65: Yes
• Operating Voltage: 440 Volts
• Maximum Voltage: 440 Volts
• Manufacturer: Motors and Armatures
• Model Info: 12289
• Part Number: 12289
• Case Material: Aluminum
• Frequency Rating: 50/60 Hz
• MFD Rating: 45+7.5 uF
• Number of Terminals: 9
