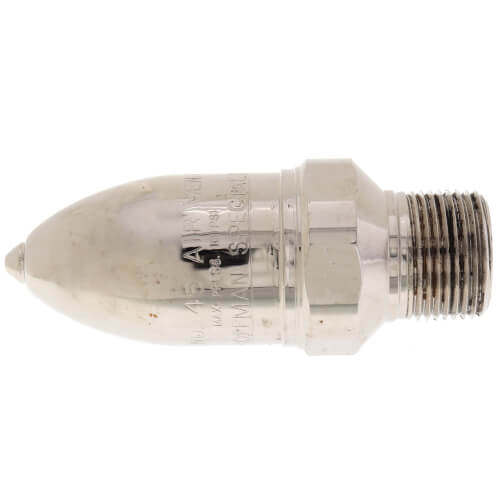

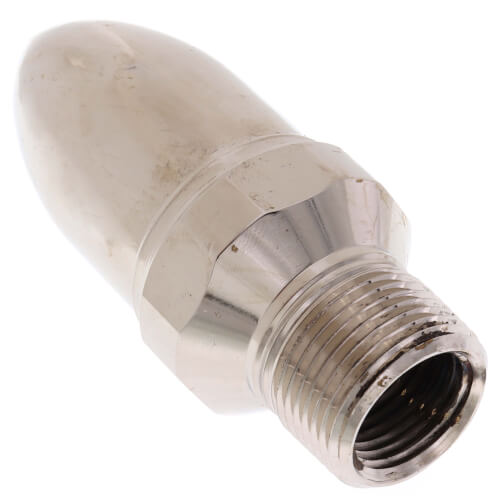

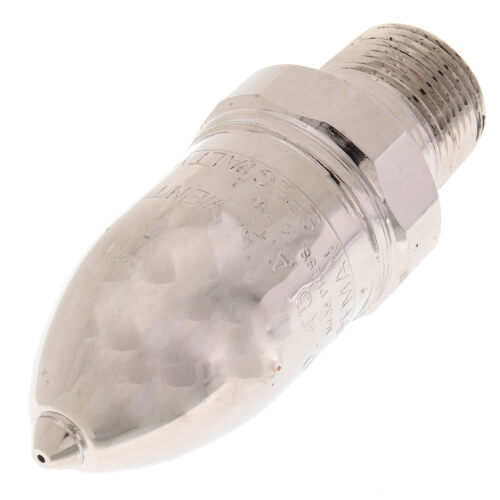

Xylem-Hoffman Specialty 401461 45 3/4 x 1/2 Straight Steam Convector Air Valve

Product Description

The Xylem-Hoffman Specialty 401461 is a non-vacuum air valve designed for small steam systems. This part features a single non-adjustable port which simplifies installation and maintenance. It includes a telescopic siphon tube with an angle cut, ensuring efficient drainage.

• For small steam systems
• Non-adjustable operation
• Compatible with 1/2 NPT female and 3/4 NPT male connections

Product Highlights

This air valve operates under a maximum pressure of ten psig and has a maximum operating pressure of six psig. Its design is optimal for convector vent applications.

Product Information

Standard Information

• Manufacturer: Xylem-Hoffman Specialty
• Product Type: Air Valve

Technical Specifications

• Thread Size: 3/4, 1/2
• Max Pressure: 10 psig
• Operating Pressure: 6 psig
• Temperature Range: 140°F - 240°F
• Material: Steel
• Body Pattern: Straight
• Weight: 0.34 pounds
• Shipping Dimensions: 4.25 x 1.55 x 1.55 inches
