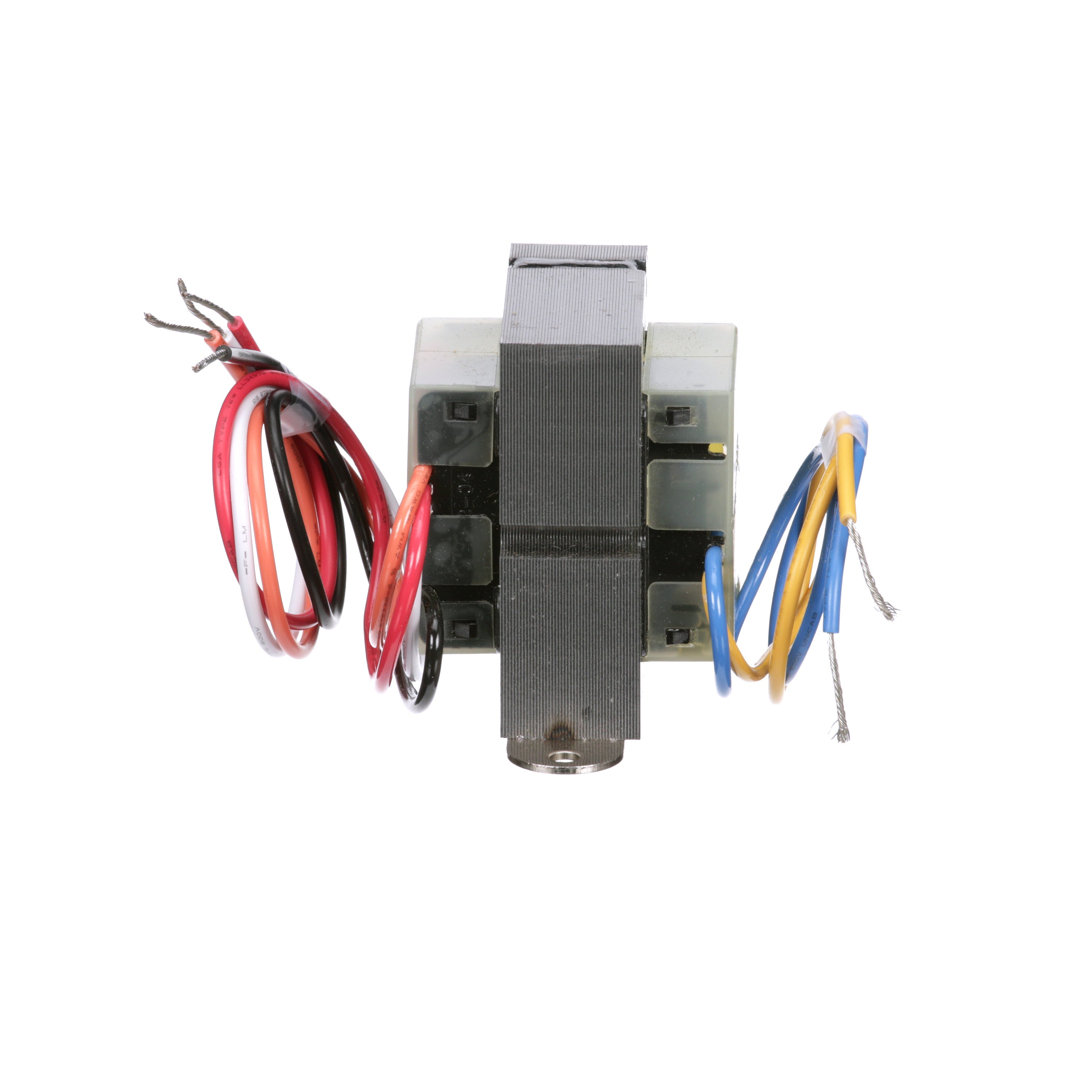

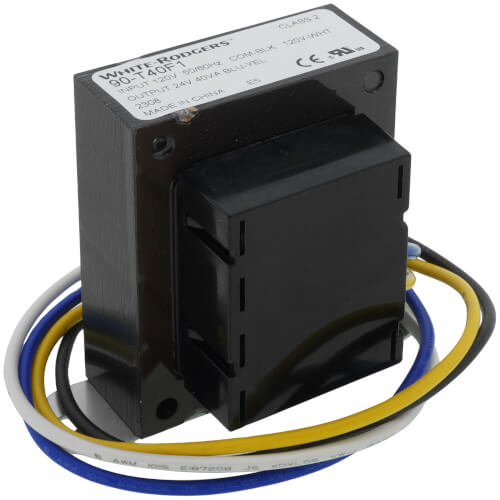

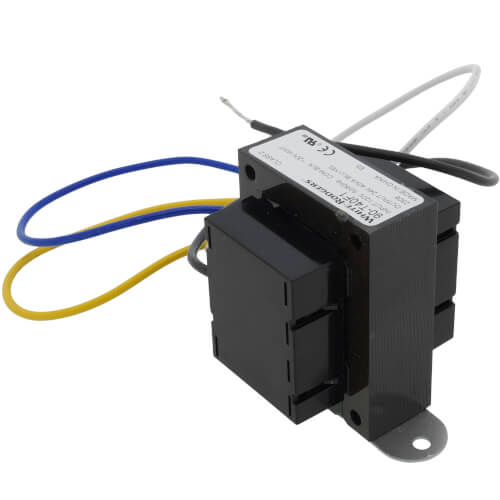

White-Rodgers 90-T40F1 Transformer 40VA 50/60 Hz 120V Pri. 24V Sec. Foot Mount Replaces 90-4011F

Product Description

The WHITE-RODGERS 90-T40F1 transformer is a 40VA, 50/60 Hz, 120V primary, 24V secondary, foot mount transformer that replaces 90-4011F. It is designed for industrial, heating, and air conditioning control applications. This Class 2 transformer features color-coded primary leads and is energy limiting.

• Color coded primary leads
• Multi-mount styles available
• Energy Limiting

Product Highlights

Class 2 foot mount transformer for heating and air conditioning controls. Features 120V primary and 24V secondary voltage.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-T40F1
• Country of Origin: United States

Technical Specifications

• Brand: WHITE-RODGERS
• MPN: 90-T40F1
• VA Rating: 40 VA
• Hz - Electrical [Specifications]: 50/60 Hz
• Input Voltage - Transformer [Specifications]: 120V AC
• Output Voltage - Transformer [Specifications]: 24V AC

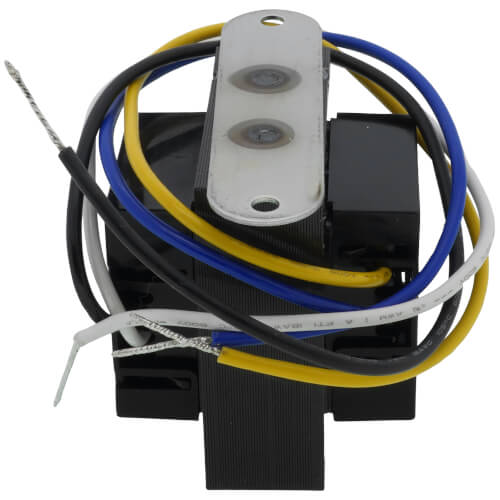

• Mounting - Transformer [Specifications]: Foot-Mount (open construction)
• Primary Connection [Specifications]: Leads
• Secondary Connection [Specifications]: Leads
• Depth [Specifications]: 2.188 in
• Width [Specifications]: 3.25 in
• Height [Specifications]: 2.75 in
• Standards [Specifications]: U.L. File Number E507466
• Application: Heating Air Conditioning
• Type: Class 2 Transformers
• Voltage (Primary): 120V
• Voltage (Secondary): 24v
• Hertz: 60
• Mount: Foot
• Electric Connection: Leadwires
• Mounting Style: Foot Mount
• Nominal Power Rating: 40 VA
• Maximum Operating Frequency (Nominal): 50/60 Hz
• Country of Origin (subject to change): United States
