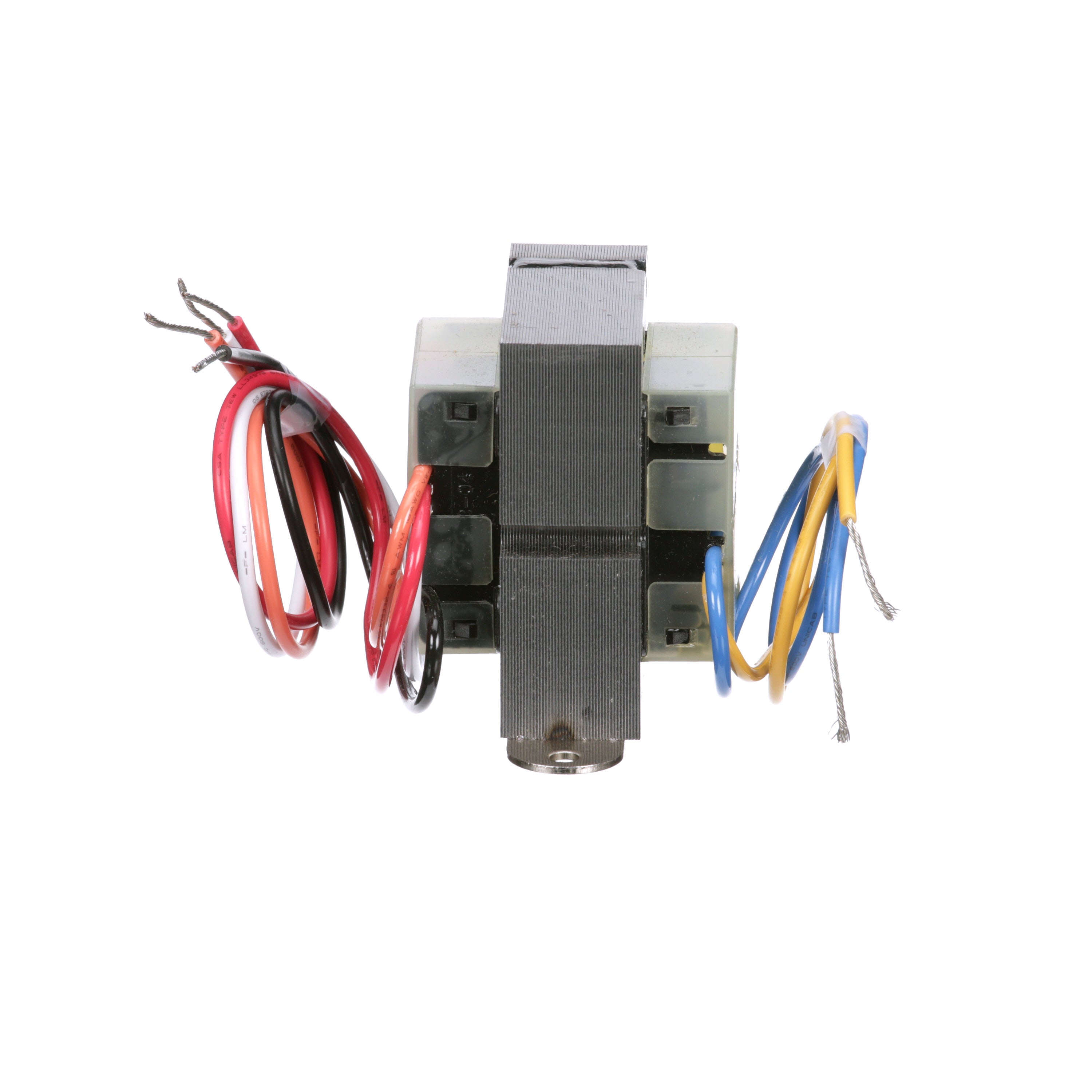

White-Rodgers 90-T40M3 Transformer 40VA Replaces 90-4031m

Product Description

The White-Rodgers 90-T40M3 transformer is a multi-mount transformer with a 40VA power rating. It is designed with a primary voltage of 120/208/240V and a secondary voltage of 24V, operating at 50/60 Hz. This transformer is suitable for various electrical systems and replaces the 90-4031M transformer.

• Multi-mount design for versatile installation.
• Primary voltage: 120/208/240V, Secondary voltage: 24V.
• Suitable for industrial, heating, and air conditioning controls applications.

Product Highlights

The White-Rodgers 90-T40M3 transformer offers a reliable and cost-effective solution for upgrading electrical systems, ensuring minimal downtime for operations.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-T40M3
• Country of Origin: China

Technical Specifications

• Brand: White-Rodgers
• MPN: 90-T40M3
• Input Voltage: 120V AC, 208V AC, 240V AC
• Output Voltage: 24V AC
• VA Rating: 40 VA
• Enclosure Style: Open
• Mounting: Foot, Universal (1/2 in Hub Plate)
• Phase: Single
• Frequency: 60 Hz
• Primary Connection: 11 in Leads
• Secondary Connection: 11 in Leads
• Temp. Rise: 85 Degrees C
• Enclosure Finish: No Finish
• Enclosure Rating: Not Rated
• Manufacturer: White Rodgers
• Model / MPN: 90-T40M3
• Product Type: TRANSFORMER
• Depth: 4.25 in
• Width: 3 in
• Height: 4.25 in
• Includes: Multi Mount Plate
• Standards: cURus File Number E33334
• Item: Class 2 Transformer
• Country of Origin (subject to change): China
• Connection - Primary: Wire Lead
• Connection - Secondary: Wire Lead
• NEMA Enclosure Rating: Not Rated
• Overall Depth: 4.25 in
• Overall Height: 4.25 in
• Overall Width: 3 in
• Power Rating: 40 VA
• UPC: 350816697223
• Product Category: Thermostats and Controls
• Warranty: 1 Year
