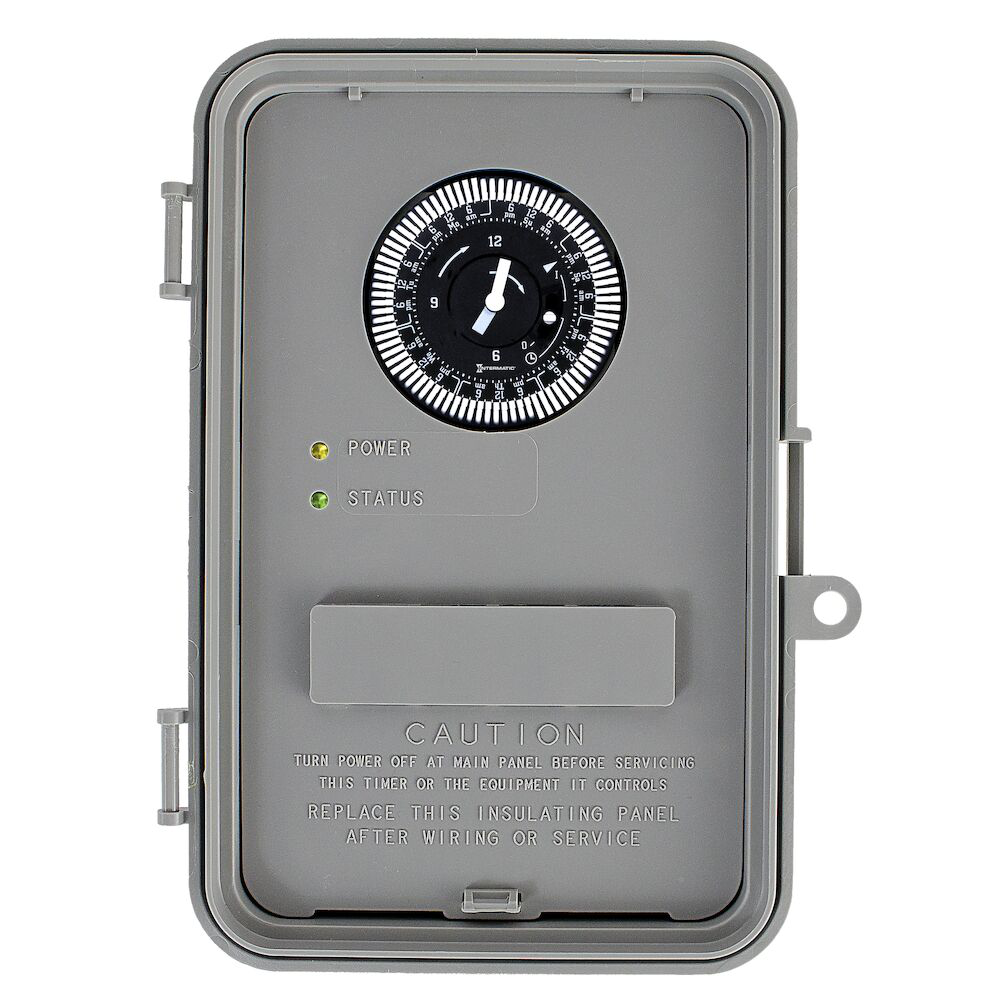

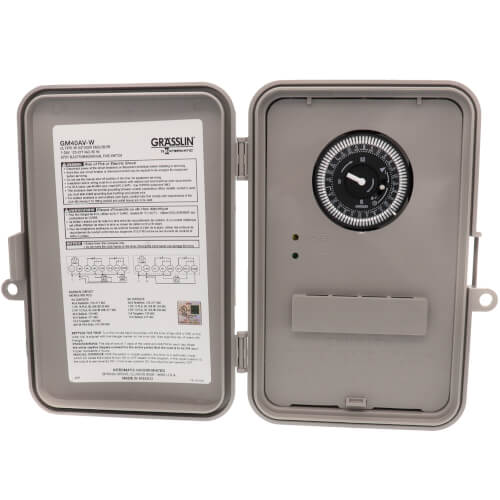

Intermatic GM40AV-W Electromechanical Timer Switch 40A DPDT Auto Voltage Adjustable (120-277V)

Product Description

The Intermatic GM40AV-W is a robust, 40 amp DPDT electromechanical time switch designed for flexible, high-amperage operations in both residential and commercial settings. Equipped with auto voltage capability, it adapts seamlessly across 120 to 277 VAC inputs. This model is housed within a NEMA 3R outdoor enclosure, ensuring durability in various environments.

• Auto voltage detection from 120 to 277 VAC without manual intervention
• DPDT switching with options for 24-hour and 7-day operations
• Supports up to 48 ON/OFF settings per day, enhancing programmability

Product Highlights

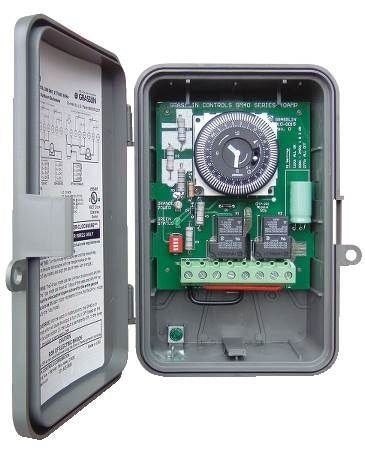

Intermatic's GM40AV-W features a manual override switch and status LED indicators for straightforward operations and monitoring. Its compact, snap-in mechanism allows easy installation and retrofitting. The time switch is particularly effective for lighting, HVACR applications, and other high-demand electrical circuits.

Product Information

Standard Information

• Brand: Intermatic
• Model: GM40AV-W

Technical Specifications

• Dimensions: 8.88 HEIGHT x 6.61 WIDTH x 3 DEPTH IN, 22.56 HEIGHT x 16.79 WIDTH x 7.62 DEPTH CM
• Switching Capacity: 40 Amp, DPDT
• Voltage Acceptance Range: 120-277 VAC
• Environmental Conditions: Operates within -40 to 131 degrees Fahrenheit
• Power Indicator: Dual LED System
• Enclosure: NEMA 3R Outdoor Rated
• Mounting Type: Wall
• UPC: 078275140981
