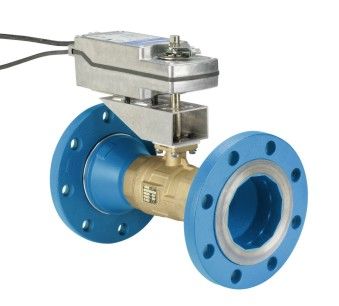

Johnson Controls VG12A5JU+94NGGC Model VG12A5JU Flanged Trim Ball Valve HVAC Control

Product Description

The Johnson Controls VG1000 Series Ball Valve, model VG12A5JU+94NGGC, is engineered to regulate the flow of hot and cold mediums in HVAC systems. Ideal for both commercial and industrial environments, this valve ensures controlled fluid transfer and system efficiency.

• Designed for ASME Class 150 flanges.
• Compatible with 50% glycol solutions besides hot and cold water.
• Available in multiple sizes including 2-1/2 inches, 3 inches, and 4 inches.

Product Highlights

This valve system integrates with Johnson Controls actuators and offers flexible installation options. It comes equipped with a M9220-GGC-3 electric actuator featuring spring-return functionality, enhancing reliability and performance.

Product Information

Standard Information

• Close off Pressure Rating: 100 psi for Two-Way, 50 psi for Three-Way.
• Country of Origin: United States.

Technical Specifications

• Package Dimensions: Length 6 inches, Width 5 inches, Height 6 inches.
• Package Weight: 0.6 lbs.
• Item Weight: 6.4 lbs.
