3XLOGIC Cameras VH-DECODER-4K 16ch Ip Decoder Hdmi

Product Description

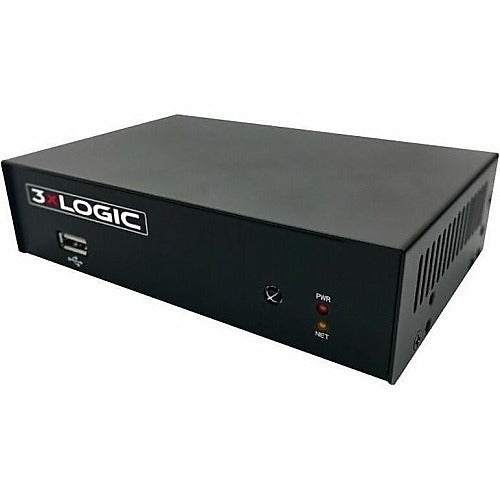

The 3XLOGIC CAMERAS VH-DECODER-4K is a 16-channel IP decoder designed to convert network video streams into a high-definition display output over a single HDMI channel. Built for professional surveillance installations, this decoder accepts IP camera streams and renders them to a connected monitor or display, making it a core component in video surveillance control rooms, security operations centers, and large-scale monitoring environments. Licensed security integrators and professional AV or security technicians are the primary installers of this type of hardware.

The VH-DECODER-4K is suited for commercial and enterprise-grade IP camera systems where centralized video decoding is required at a display endpoint. It supports up to 16 IP channels simultaneously, allowing operators to monitor multiple camera feeds from a single HDMI-connected display. This decoder fits into Vigil-based IP surveillance architectures and is sold individually as a single unit.

Key Features

• Decodes up to 16 simultaneous IP camera channels
• Single HDMI output for direct monitor or display connection
• 4K-capable decoding for high-resolution IP video streams
• Designed for integration into Vigil IP surveillance systems
• Sold as a single unit for flexible deployment

Compatibility

Designed as an OEM-style component for Vigil IP-based video surveillance systems supporting up to 16 network camera channels with HDMI display output.

Installation Notes

Installation should be performed by a licensed security integrator or qualified low-voltage technician familiar with IP video surveillance systems. Power down all connected display and network equipment before making connections. Ensure the HDMI cable and connected monitor support the output resolution of the decoder. Follow all applicable local codes and manufacturer guidelines for network and low-voltage wiring.
