Description

Product Description

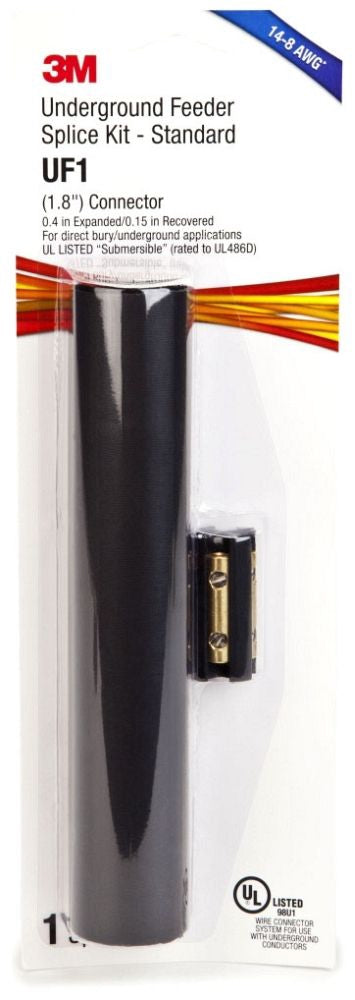

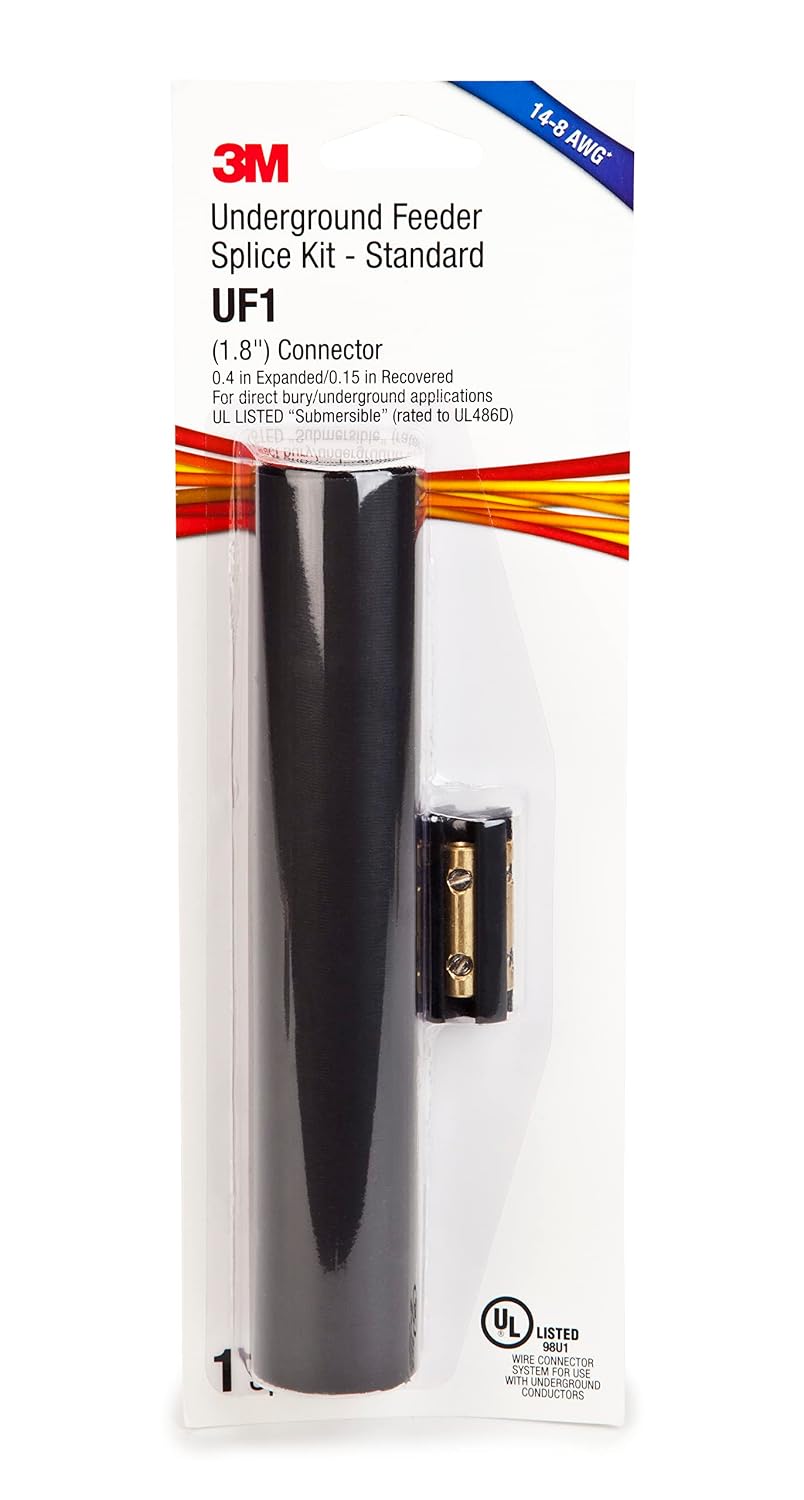

3M UF1 is a splice kit for underground feeder (UF) cables that includes a 1.8 in (45.7 mm) cylindrical set-screw connector and an 8.0 in (203.2 mm) heavy-wall, adhesive-lined heat shrink tube. The kit is rated 600 V and is intended for single splices on three-conductor UF cables, accommodating conductor sizes from 14 to 10 AWG. It is UL 486D approved, RoHS compliant, and rated for -67 to 230 �F.

  • Includes 1.8 in cylindrical set-screw connector and 8.0 in heavy-wall adhesive-lined heat shrink tube
  • Rated 600 V for underground feeder cable, supports three conductors, fits 14 to 10 AWG
  • UL 486D approval, RoHS compliant, temperature range -67 to 230 �F

Product Highlights

Single-splice UF kit with 1.8 in connector and 8 in adhesive-lined heat shrink; 600 V rated; fits 14�10 AWG; UL 486D and RoHS compliant.

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: UF1
  • Country of Origin: Taiwan
Technical Specifications
Brand
3M
MPN
UF1
Model
UF1
Product Name
Underground Feeder Splice Kit
Voltage Rating
600 V
Cable Type
Underground feeder (UF) cable
Number of Conductors
3
Conductor Size
14 to 10 AWG
Number of Splices
1
Connector Type
Cylindrical set screw connector
Connector Length
1.8 in (45.7 mm)
Heat Shrink Tube Length
8.0 in (203.2 mm)
Insulator Type
Heavy-wall adhesive-lined heat shrink tube; vinyl insulation between connectors
Approvals
UL 486D
RoHS Compliance
Yes (RoHS 2011/65/EU)
Temperature Range
-67 to 230 �F
Pack Quantity
6 kits per case
Individual Weight
0.205 lb
Country of Origin
Taiwan
