Product Description

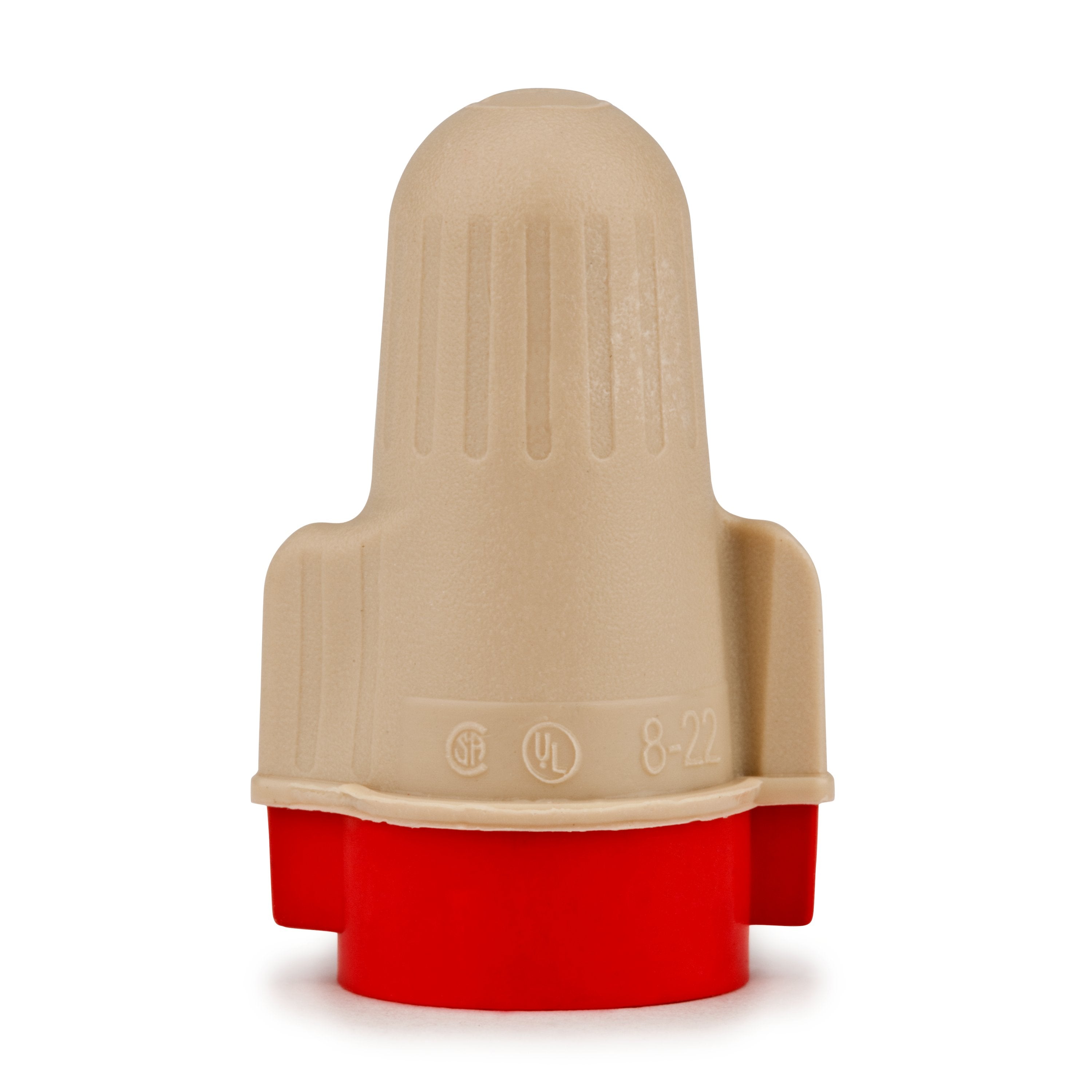

The 3M T/R+POUCH is a twist on wire connector designed for reliable electrical connections. It is suitable for various wiring applications and accommodates original and copper wires ranging from 22 to 8 AWG.
- Compatible with 600 volts AC.
- Flame-retardant and insulated for safe usage.
- Durable winged shell design ensures ease of use.
Product Highlights
This connector simplifies the connection of multiple conductors. Its compact design allows for quick installations in tight spaces, reducing installation time.
Product Information
Standard Information
-
Manufacturer: 3M
-
UPC: 05112854454
Technical Specifications
-
Application: For electrically connecting two or more conductor ends in a pigtail application and insulating the connection
-
Color: Red/Tan
-
Manufacturer Part Number: 7100127165
-
Material: Spring Steel
-
Shell Style: Winged
-
Standards/Approvals: RoHS Compliant, C22.2 188 File No. M1983, CE Certified, UL 486C File No. E23438
-
Temperature Rating: 221 deg F
-
Voltage Rating: 600 VAC
