3M T/R+BOX Twist-On Wire Connector 600V (100/Box) Replacement MPN

Product Description

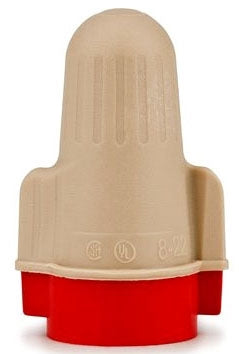

The 3M T/R+BOX is a twist-on wire connector designed for secure electrical connections. This connector accommodates wire sizes from twenty-two to eight AWG and supports a maximum voltage rating of six hundred volts. The compact shape and reliable materials make it suitable for various applications, including residential and commercial settings.

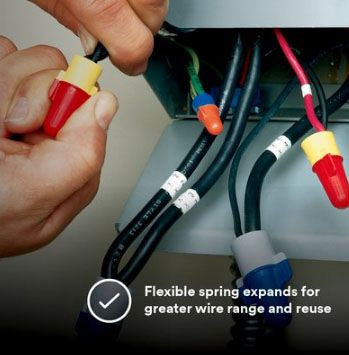

• Connects multiple conductor ends in pigtail applications
• Rated for maximum voltage of 600V
• Flame-retardant and UL listed for safety

Product Highlights

Ideal for electricians and contractors, the T/R+BOX provides secure insulation and a smooth installation experience.

Product Information

Standard Information

• Manufacturer: 3M
• Product UPC: 051128544546

Technical Specifications

• Approval: UL, CSA, CE
• Color: Tan/Red
• Shell Material: Polypropylene/Thermoplastic Elastomer
• Standard Package: 100 per Box
• Temperature Rating: 105 Deg C
• Wire Type: Copper, Solid/Stranded
• Wire Size: 22 to 8 AWG
• Maximum Wire Combination Size: #8
• Minimum Wire Combination Size: #22
