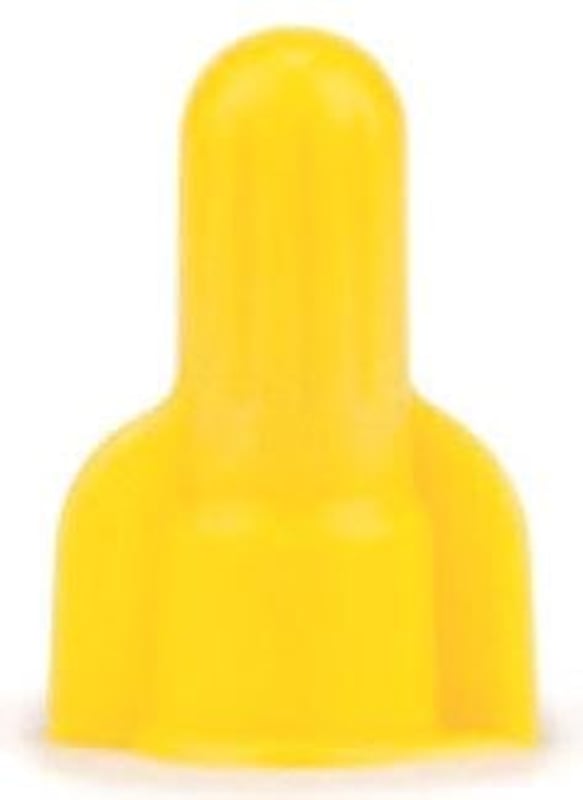

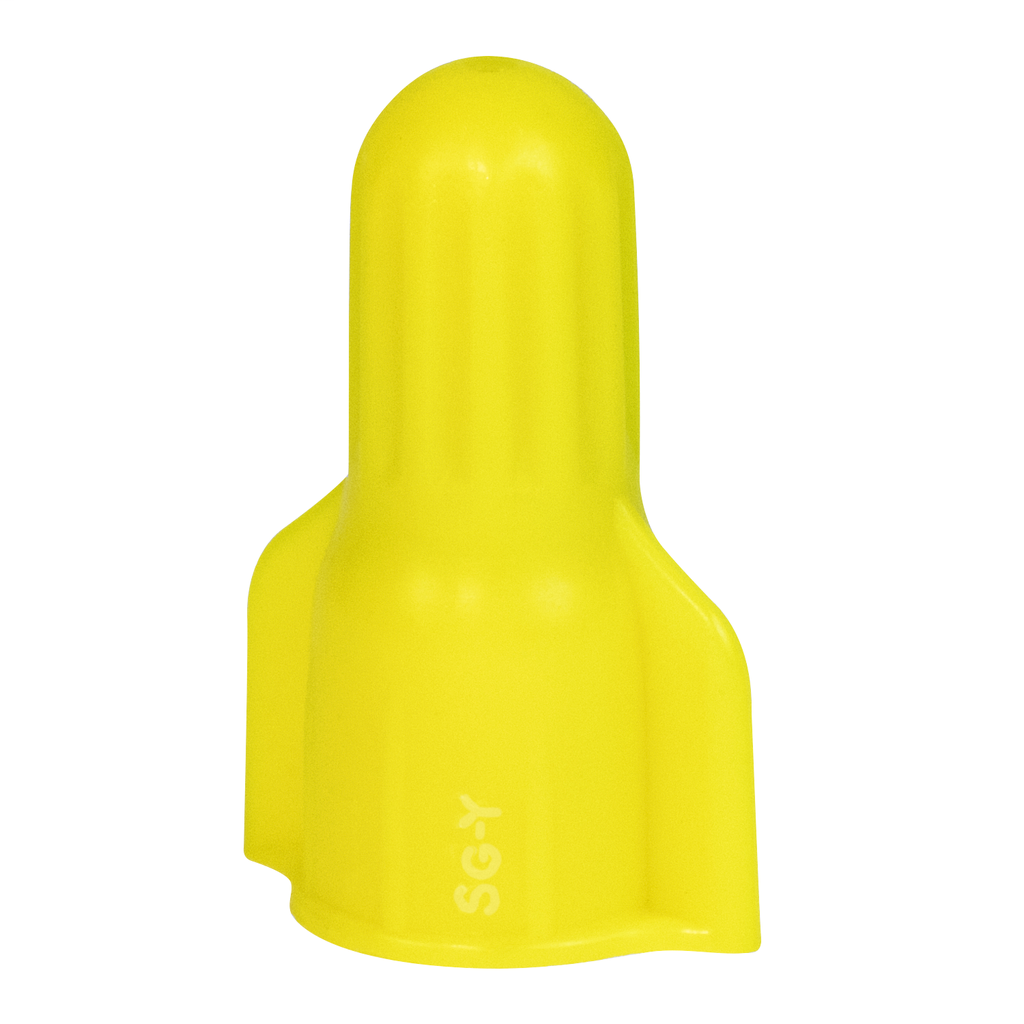

3M SG-Y BAG Secure Grip Wire Connector 500 Per Bag

Product Description

3M SG-Y BAG is a Secure Grip wire connector designed to electrically connect and insulate copper conductors for residential and commercial wiring applications. The connector uses an internal insulated spring and slip-resistant ridges with a straight wing for a secure twist-on connection. It accommodates a wire range of 1.5 - 2.5 mm2 (solid or stranded), is UL listed, and has a temperature rating of 105 C (221 F).

• Internal insulated spring provides a powerful, secure grip for lasting connections
• Accommodates wire range of 1.5 - 2.5 mm2 (solid or stranded); listed wire size 22 to 12 AWG
• Slip-resistant ridges and straight wing twist-on design for faster, finger-friendly installation

Product Highlights

Twist-on, fully insulated connector with internal spring; UL listed; temperature rating 105 C (221 F); packaged 500 per bag.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: SG-Y BAG
• Country of Origin: China

Technical Specifications

• Brand: 3M
• Manufacturer: 3M
• Manufacturer Part Number: SG-Y BAG
• Product Name: Secure Grip Wire Connector
• Series: Secure Grip
• Type: Twist-on wing wire connector
• Wire Range: 1.5 - 2.5 mm2 (solid or stranded)
• Wire Gauge (AWG): 22 to 12 AWG
• Temperature Rating: 105 C (221 F)
• Insulation: Fully insulated
• Termination: Twist-on
• Conductor Compatibility: Copper conductors

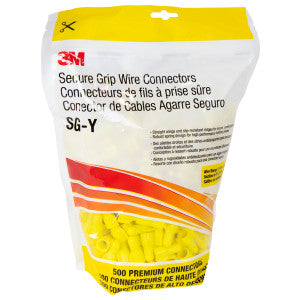

• Packaging: 500 per bag; 5000 per case
• Country of Origin: China
• UPC: 07630892604
• GTIN: 00076308926045
• Standards/Certifications: UL Listed
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• HTSUS: 8546.90.0000
• ECCN: EAR99
• UNSPSC: 39121409
