Product Description

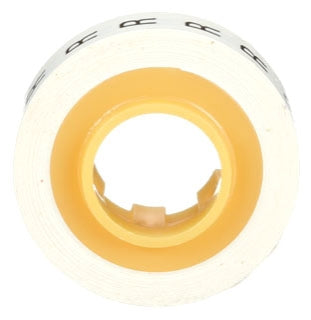

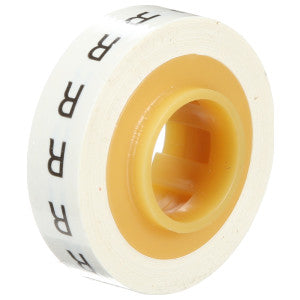

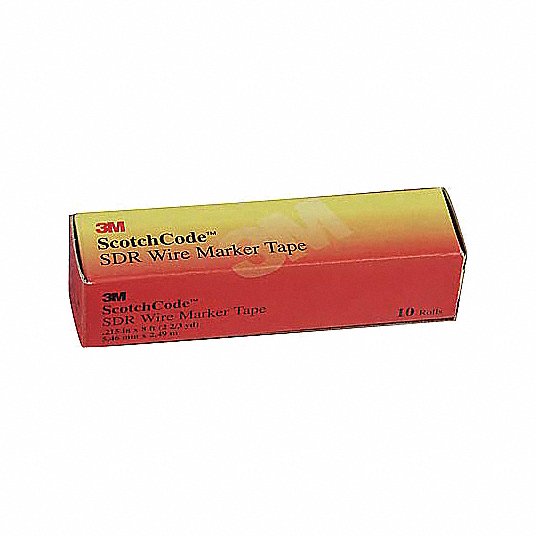

The 3M SDR-R ScotchCode Wire Marker Tape is a polyester film tape with an acrylic pressure sensitive adhesive, designed for use with the 3M STD ScotchCode tape dispenser. Ideal for marking wires, terminal blocks, and panels. The tape is pre-printed with 6 letters per inch.
- Suitable for phase identification on large- or small-gauge wire or cable and automotive applications
- Acrylic, pressure-sensitive adhesive ensures firm adhesion
- Withstands a wide temperature range of -40 to 250 degrees F
Product Highlights
Pre-printed wire marker tape for easy cable and wire identification. RoHS 2011/65/EU Compliant.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: SDR-R
-
Country of Origin: USA
Technical Specifications
-
Legend: R
-
Material: Polyester Film
-
Suitable For Use With: Terminal Blocks, Terminal Strips and Wire
-
Type: Pre-Printed Self-Adhesive
-
Width: 0.22 in
-
Brand: 3M
-
Background Color: White
-
Legend Color: Black
-
Label Material: Polyester
-
Label Type: Preprinted
-
Minimum Operating Temperature: -40
-
Maximum Operating Temperature: 250
-
Label Width: 0.22 in
-
Label Height: 0.003 in
-
Label Attachment Style: Self-Adhesive
-
Number of Labels: 576
-
Fits Wire Diameter: 6/0 to 24 AWG
-
MPN: SDR-R
-
Adhesive Material: Acrylic
-
Applications: Marking Wire and Cable
-
Color: White
-
Length (Metric): 2.4 m
-
Marker ID Style: Pre-printed
-
Marker Type: Dispenser
-
Printed Text: "R"
-
Printed Text Type: Number - R
-
RoHS 2011/65/EU Compliant: Yes
-
Tape Color: White
-
Trademark: Scotchcode
-
UV Resistant: No
-
Series: ScotchCode SDR Series
-
Length: 8 ft
-
Application: Marking Wire and Cable
-
Marker Legend: R
