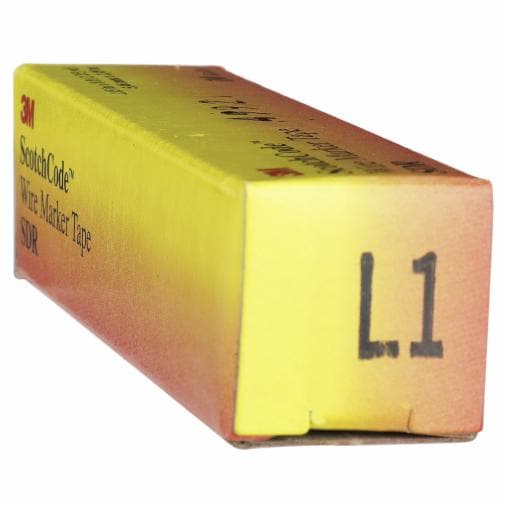

Product Description
The 3M SDR-L1 wire marker tape is a refill roll featuring alphanumeric pre-printed legends of L1. Made from polyester film with acrylic adhesive, it is designed for marking wires, cables, terminal blocks, and panels. The tape is 0.215 inches wide and 96 inches long with a thickness of 3 mil. It withstands operating temperatures from -40 to 250 Deg F.
- High tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
- Available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols
- Can be used for applications with operating temperatures between -40°F (-40°C) to 250°F (121°C)
Product Highlights
Wire marker tape with pre-printed L1 legend, suitable for marking wires and cables in a variety of applications.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: SDR-L1
-
Country of Origin: USA
Technical Specifications
-
Adhesive Material: Acrylic
-
Application: Marking Wire and Cable
-
Legend: L1
-
Marker ID Style: Pre-printed
-
Marker Type: Dispenser
-
Material: Plastic
-
Maximum Insulation Outer Diameter: 0.145 in
-
Maximum Operating Temperature (Fahrenheit): 250 °F
-
Maximum Recommended Voltage Rating: 600 V
-
Printed Text Type: Symbol - L1
-
Product Type: Identification
-
Tape Color: White
-
UV Resistant: No
-
Units per Case: 50.0
-
Overall Length: 2.4 m
-
Overall Width: 5.46 mm
-
Buy Line: 3M
-
Country Of Origin: USA
-
Currency Code: USD
-
Item Returnable?: Y
-
Package Weight: .3550
-
Brands: ScotchCode™
-
Dispenser/Marker Type: Tape Roll Refill
-
Max. Number of Cores: 107
-
Maximum Insulation Outer Diameter (Metric): 3.7 mm
-
Maximum Operating Temperature (Celsius): 121 °C
-
Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Long-haul/Metro Loop Network: CO/POP, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Backhaul
-
Series: ScotchCode™ SDR
-
Operating Temperature: -40°C ~ 121°C
-
Size: 0.22" W x 96.00" L (5.5mm x 2.4m)
-
Cable Diameter: Cut to Desired Diameter
-
Width: 0.03 yd, 0.02 m
-
Height: 0.1 yd, 0.09 m
-
Length: 0.03 yd, 0.02 m
-
Volume: 3.23 cubic inch, 52.99 cm3
-
Weight: 1.12 oz, 31.8 g
-
Sold As: pack
