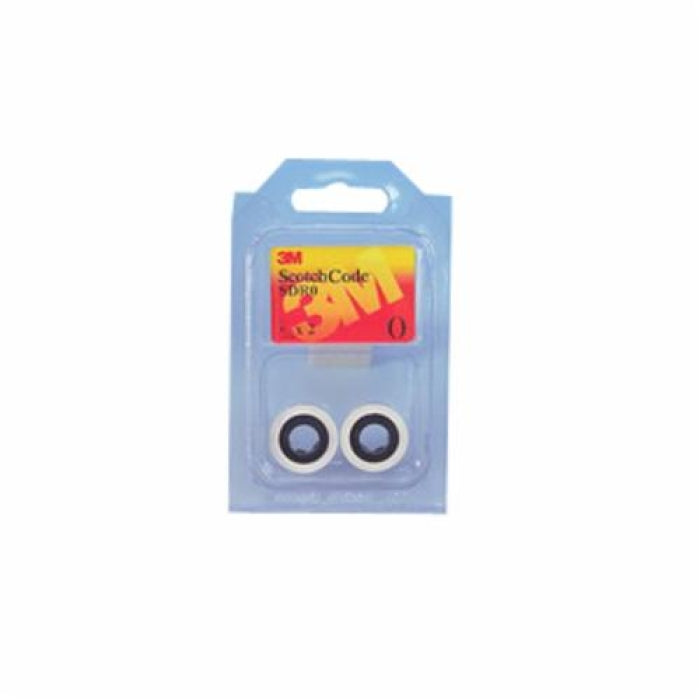

3M SDR-0-9 Wire Marker Tape Refill Roll

Product Description

The 3M SDR-0-9 Wire Marker Tape Refill Roll, used with the 3M ScotchCode Tape Dispenser STD, is suitable for labeling small- or large-gauge wire and cable applications, hoses, tubing, panel boards and other components. This pre-printed, self-adhesive tape saves time and keeps installations organized. It is RoHS 2011/65/EU Compliant for wire identification in panel boards, terminal blocks/strips or switchgear.

• Can be used at operating temperatures ranging from -40 to 250 deg F
• Marks all types of wire and cable including power, control, fiber optic, electronic, telecommunications and instrumentation
• Has acrylic adhesive

Product Highlights

The 3M SDR-0-9 offers a standardized way to label items, eliminating hand-marking. The tape is pre-printed and self-adhesive.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: SDR-0-9
• Country of Origin: USA

Technical Specifications

• Legend/Background Color: Black/White
• Legend: 0 - 9
• Material: Polyester Film
• Type: Self-Adhesive
• Width: 0.22 in
• Roll Length: 96 Inch
• Tape Thickness: 3 Mil
• Adhesive Material: Acrylic
• Number of Characters: 6 per Inch
• Tape Color: White
• Operating Temperature Range: -40 to 250 Deg F
• Application: Marking Wire and Cable, Terminal Block, Panel
• Country Of Origin: USA
• Sub Brand: ScotchCode
• Brand Name: 3M
• Manufacturer: 3M
• Special Features: Pre-printed
