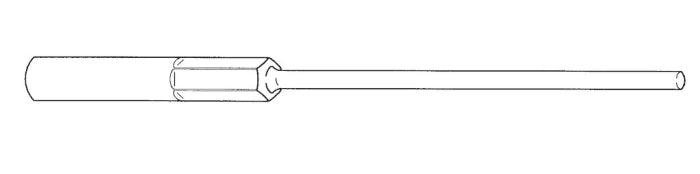

3M SC0010 Stem Connector 35 kVAC 1/0 AWG Conductor 1/4 in Dia x 6 in L

Product Description

The 3M stem connector SC0010 is designed for high voltage applications with a voltage rating of 35 kVAC. This stem connector features a tin plated aluminum barrel suitable for both copper and aluminum conductors. The connector is perfect for installations where a riser cable connects to an overhead line. The factory crimped and sealed, tin plated copper stem ensures reliable aerial line connections. For enhanced connection capabilities, the CP-1 parallel clamp accessory can be used to connect this stem connector to jumper wires.

• Voltage Rating: 35 kVAC
• Conductor Size: 1/0 AWG Stranded
• Stem Length: 6 inches

Product Highlights

This connector is suitable for use with cold shrink terminations. The design allows for connections to various cable types with robust performance.

Product Information

Standard Information

• Manufacturer: 3M
• Material: Aluminum/Copper

Technical Specifications

• Conductor Type: Stranded
• Stem Diameter: 1/4 inch
• Dimensions: 1/4 inch diameter x 6 inches length
• Finish: Tin Plated
• Series: SC Series
• Voltage Rating: 35 kVAC
