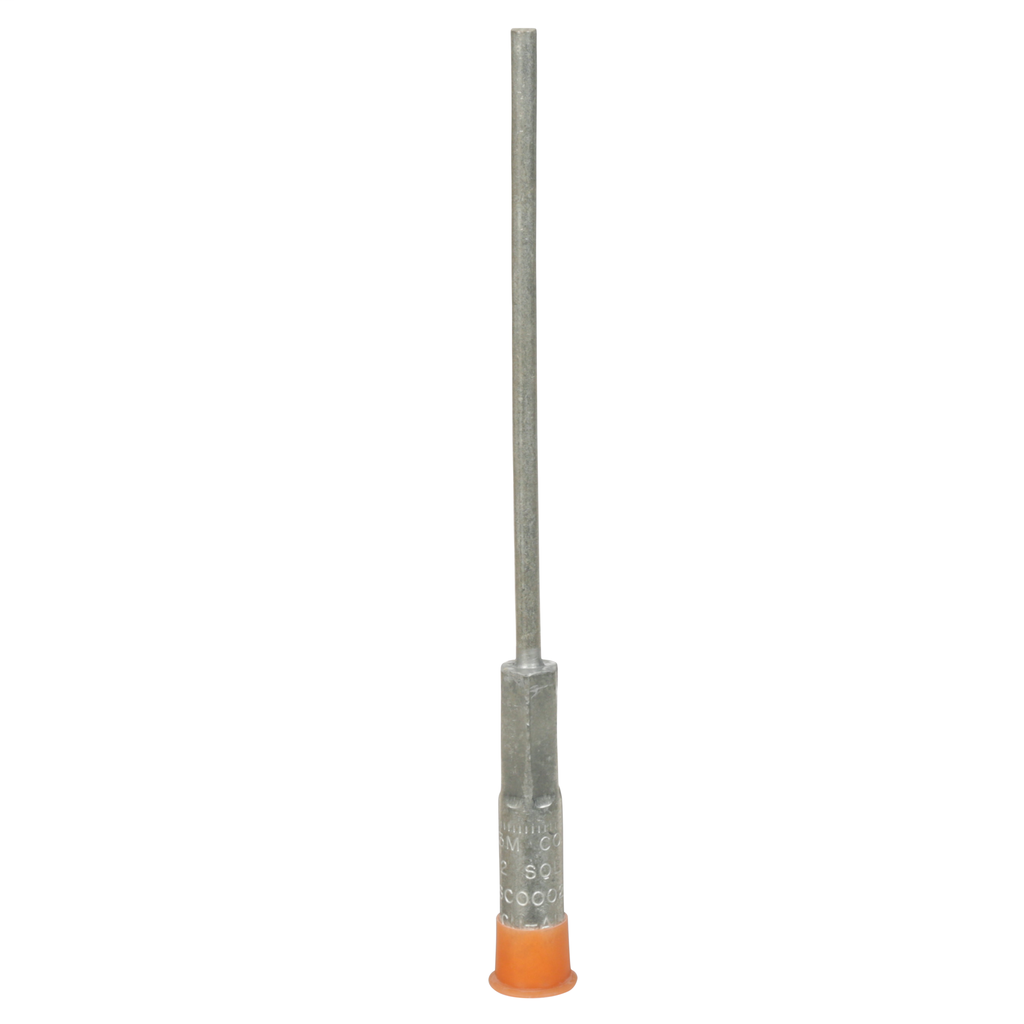

3M SC0002 Stem Connector 35 kV 4 AWG Stranded 2 AWG Solid

Product Description

The 3M SC0002 Stem Connector is designed for connecting overhead lines. This connector features a tin-plated copper stem for high reliability. It is suitable for use with both aluminum and copper conductors. The SC0002 is factory crimped and sealed, ensuring consistent performance in the field.

• Tin-plated aluminum barrel for effective conductivity
• Rated for up to thirty-five kilovolts
• Compatible with 4 AWG stranded and 2 AWG solid conductors

Product Highlights

The SC0002 Stem Connector is essential for secure aerial line connections. It offers ease of installation and is ideal for overhead connections in electrical applications.

Product Information

Standard Information

• Manufacturer: 3M
• Country of Origin: United States

Technical Specifications

• MPN: SC0002
• Catalog Number: SC0002
• Conductor Capacity: 4 AWG stranded, 2 AWG solid
• Voltage Rating: 35 kV
• Pigtail Size: 0.25 inches diameter x 6 inches length
• Width: 7.9 mm
• Barrel Type: Standard barrel
• RoHS Compliant: Yes
