3M RV18-6Q Highland Insulated Standard Ring Terminal 22 to 18 AWG 600/1000 VAC

Product Description

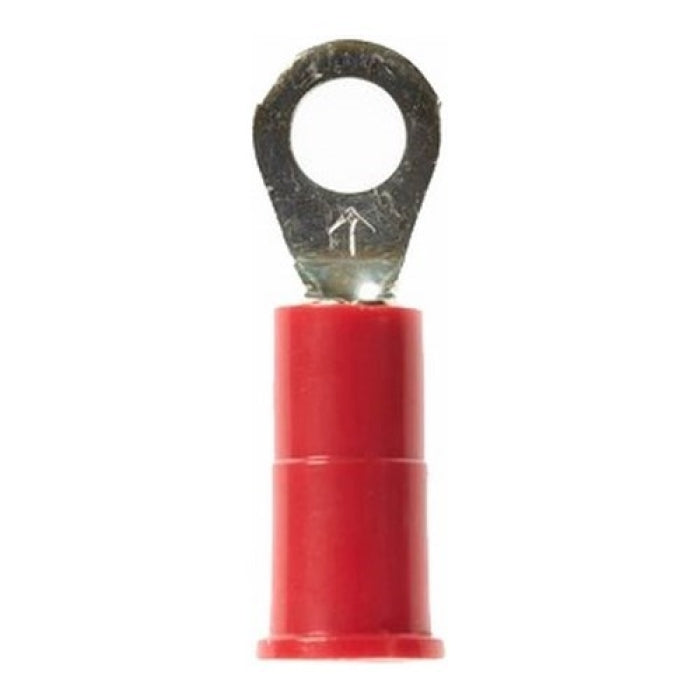

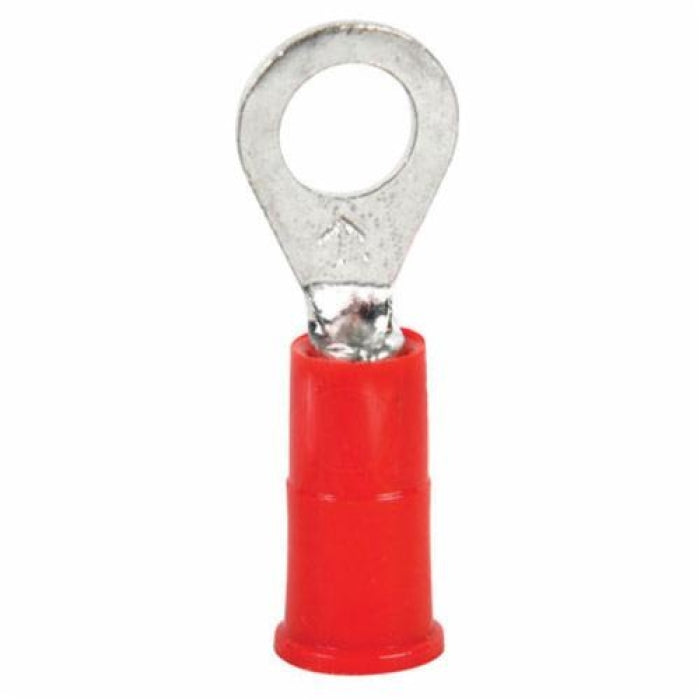

3M Highland RV18-6Q is an insulated standard ring terminal designed for wire sizes 22 to 18 AWG. This terminal features a butted seam barrel for a secure connection. It is made from high-conductivity electrolytic copper and is tin-plated to resist corrosion. The terminal can operate in temperatures from -40 to 221 degrees Fahrenheit.

• Insulated for safety and reliability
• Compatible with #6 stud dimensions
• Barrel size of one-fourth inch ID by one-fourth inch in length

Product Highlights

The Highland RV18-6Q is suitable for applications requiring reliable electrical connections, including building fixtures and signs.

Product Information

Standard Information

• Brand: 3M
• MPN: RV18-6Q

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Stud Size: #6
• Material: Copper
• Insulation Material: Vinyl
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Barrel Size: 1/4 in ID x 1/4 in L
• Tongue Size: 0.25 in W x 0.03 in THK
• Standards/Approvals: UL 486A/B, CSA C22.2, RoHS Compliant
