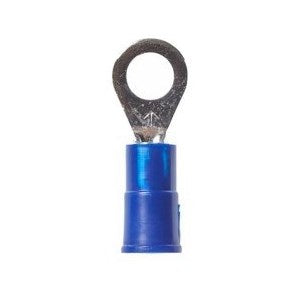

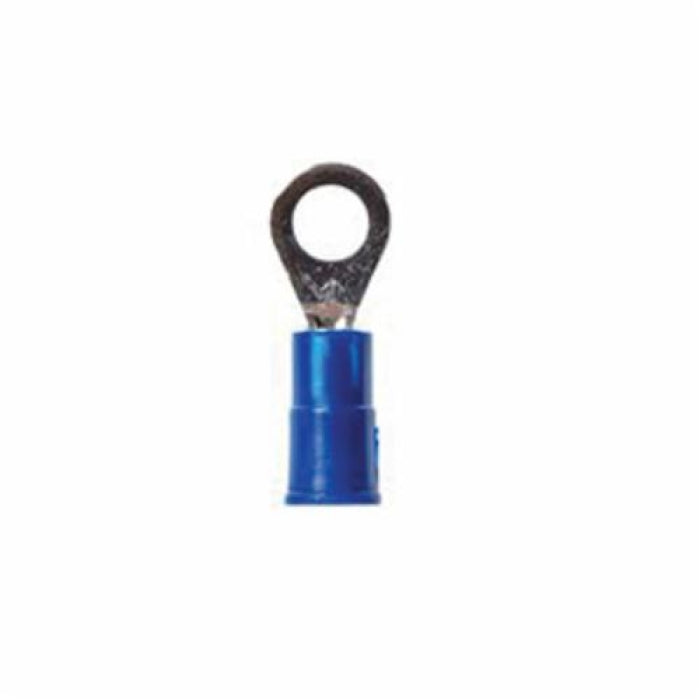

3M RV14-10Q Insulated Standard Ring Terminal 600/1000 VAC 16 to 14 AWG 25/Bag

Product Description

3M RV14-10Q is an insulated standard ring terminal designed for 16 to 14 AWG conductors. This component ensures reliable electrical connections in various applications. Constructed with a butted seam barrel, it is engineered for safe and effective performance in demanding environments.

• Insulated for effective electrical performance.
• Suitable for building fixtures or luminaires.
• Designed for easy installation with a funnel-shaped PVC sleeve.

Product Highlights

This ring terminal is compatible with standard #10 studs, capable of withstanding temperatures from -40 to 221 degrees Fahrenheit. Its vinyl insulation provides a secure fit and helps resist corrosion.

Product Information

Standard Information

• Type: Insulated Standard
• Material: Vinyl and Copper

Technical Specifications

• Voltage Rating: 600/1000 VAC
• Stud Size: #10
• Insulation Type: Vinyl
• Conductor Size: 16 to 14 AWG
• Length: 0.9 inches
• Barrel Size: 0.09 inches ID x 0.25 inches L
• Tongue Size: 0.33 inches W x 0.03 inches THK
• Temperature Rating: -40 to 221 Degrees F
