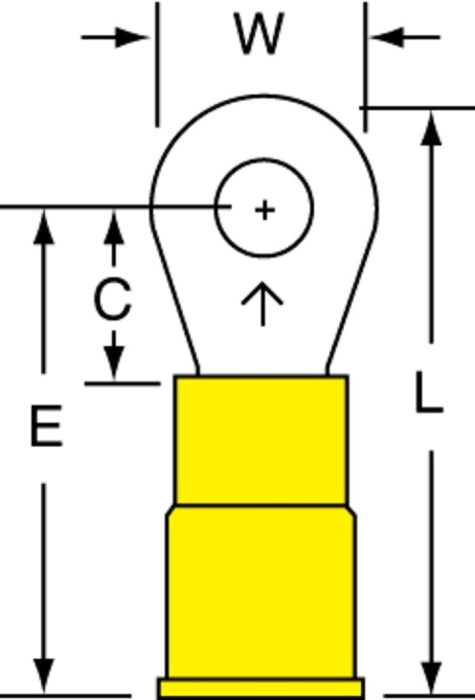

3M RV10-8Q Ring Terminal 12 to 10 AWG 1.03 in Length

Product Description

The 3M RV10-8Q ring terminal is a reliable connector for 12 to 10 AWG conductors. Its design features a butted seam barrel that provides a secure electrical connection and ensures safe performance. This terminal has a maximum insulation outer diameter of 0.25 inches and an inner diameter of 0.135 inches. It is made of electrolytic copper to enhance conductivity and is tin plated to resist corrosion. Suitable for a wide range of electrical applications, it can handle voltage ratings of up to 1000 VAC and temperatures between -40 and 221 degrees Fahrenheit.

• Vinyl insulated for safety and reliability.
• Copper construction for good conductivity.
• Compatible with #8 studs.

Product Highlights

This ring terminal is ideal for both standard and more demanding applications, making it versatile in use.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: RV10-8Q

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Length: 1.03 inches
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 1000 VAC
• Stud Size: #8
• Color: Yellow
• Standard Package: 25 per bag
• Insulation Type: Vinyl Insulated
