Product Description

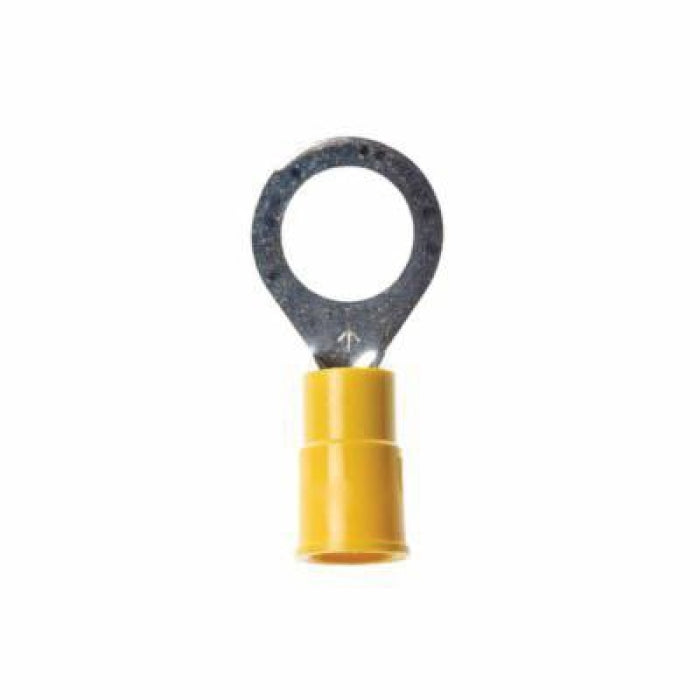

The 3M RV10-516Q ring terminal is designed for electrical connections requiring secure and reliable contact. This terminal is suitable for conductors ranging from twelve to ten American Wire Gauge (AWG). It features a butted barrel design that promotes a smooth and stable connection.
- Vinyl insulated for safety
- Temperature range from -40 to 221 degrees Fahrenheit
- Constructed from electrolytic copper with a corrosion-resistant tin plating
Product Highlights
This terminal ensures a dependable connection in various electrical applications, including wiring projects and circuit connections.
Product Information
Standard Information
-
Manufacturer: 3M
-
Part Number: RV10-516Q
Technical Specifications
-
Barrel Size: 0.135 inches ID x 0.25 inches Length
-
Barrel Type: Butted
-
Color: Yellow
-
Conductor Size: 12 to 10 AWG
-
Conductor Type: Tin Plated Copper
-
Dimensions: 0.53 inches wide x 0.04 inches thick
-
Length: 1.26 inches
-
Stud Size: 5/16 inches
-
Temperature Rating: -40 to 221 degrees Fahrenheit
-
Voltage Rating: 1000 VAC
