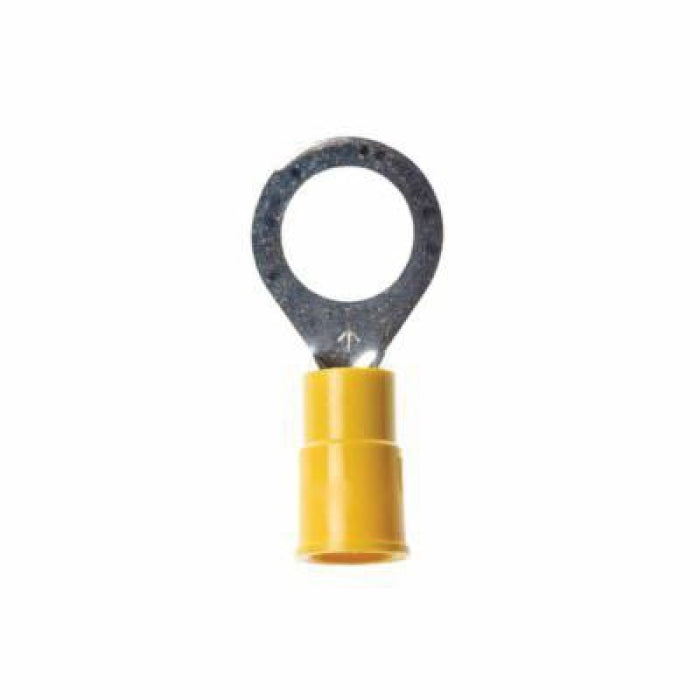

3M RV10-516Q Ring Terminal 12 to 10 AWG 25 Per Bag

Product Description

The 3M RV10-516Q is a reliable ring terminal designed for efficient electrical connections. It accommodates conductor sizes from twelve to ten AWG and features a butted seam barrel for enhanced strength and performance. This terminal is made from electrolytic copper with a tin-plated finish to ensure good conductivity and corrosion resistance.

• Temperature rating: -40 to 221 degrees Fahrenheit.
• Voltage rating: 1000 VAC.
• Easy installation with a funnel design.

Product Highlights

Suitable for a variety of electrical applications, the 3M RV10-516Q provides a secure and dependable connection.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: RV10-516Q

Technical Specifications

• Barrel Size: 0.135 in ID x 0.25 in L
• Barrel Type: Butted
• Color: Yellow
• Conductor Size: 12 to 10 AWG
• Conductor Type: Tin Plated Copper
• Dimensions: 0.53 in W x 0.04 in THK
• Length: 1.26 in
• Stud Size: 5/16 in
• Voltage Rating: 1000 VAC
• Temperature Rating: -40 to 221 degrees F
