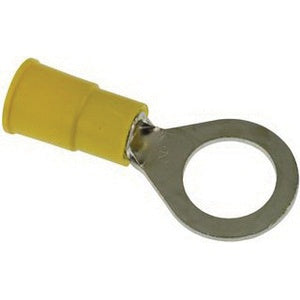

3M RV10-38Q Ring Terminal 12 to 10 AWG

Product Description

The 3M RV10-38Q Ring Terminal is a reliable component for wire connections. It is suitable for 12 to 10 AWG conductors and features a vinyl insulated butted seam barrel. This terminal can withstand a temperature range of negative forty to two hundred twenty-one degrees Fahrenheit. The terminal is made from electrolytic copper and has a tin plated finish for improved conductivity and resistance against corrosion.

• Vinyl insulated for safety and performance
• Compatible with 12 to 10 AWG wire sizes
• Rated for 1000 volts, making it suitable for various applications

Product Highlights

This ring terminal is designed for a secure fit and excellent electrical contact. The butted seam barrel construction provides durable connections.

Product Information

Standard Information

• Brand: 3M
• MPN: RV10-38Q

Technical Specifications

• Conductor Size: 12-10 AWG
• Stud Size: 3/8 inch
• Length: 1.26 inches
• Insulation Material: Vinyl
• Temperature Rating: -40 to 221 degrees F
• Voltage Rating: 1000 VAC
• Barrel Type: Butted
• Finish: Tin plated
