Product Description

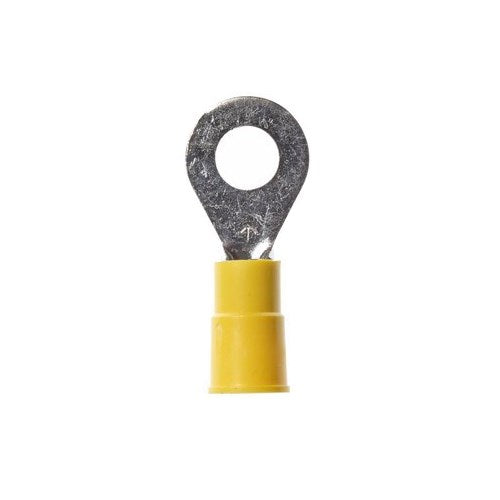

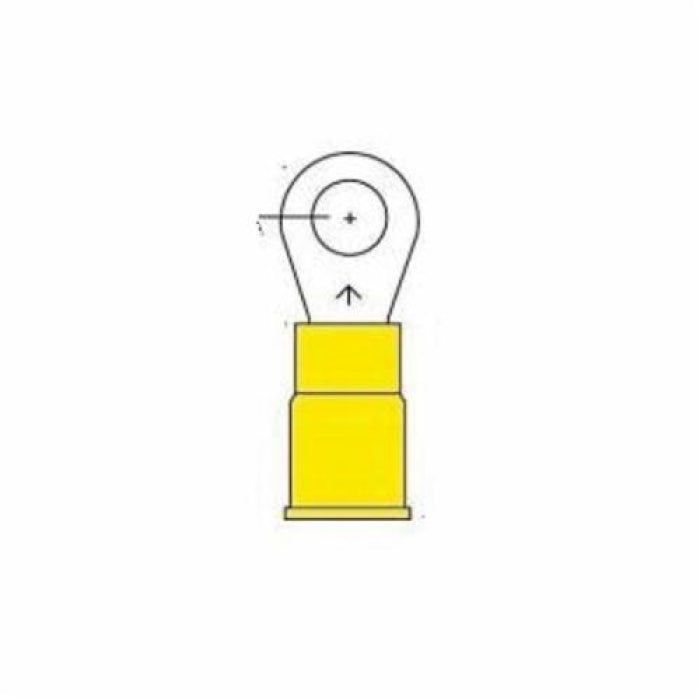

The 3M Highland RV10-14Q is an insulated standard ring terminal designed for 12 to 10 AWG conductors. It features a butted seam barrel for a secure connection and is suited for a maximum stud size of one quarter inch.
- Compatible with 12 to 10 AWG wire
- Temperature rating ranges from -40 to 221 degrees Fahrenheit
- Vinyl insulation for added protection
Product Highlights
This ring terminal is designed for reliable use in electrical wiring applications. The yellow vinyl insulation ensures visibility and reduces the risk of accidental shorts.
Product Information
Standard Information
-
Manufacturer: 3M
-
MPN: RV10-14Q
Technical Specifications
-
Conductor Size: 12 to 10 AWG
-
Length: 1.26 inches
-
Width: 0.53 inches
-
Thickness: 0.04 inches
-
Barrel Size: 0.135 inches ID x 0.25 inches L
-
Stud Size: 1/4 inch
-
Voltage Rating: 600/1000 VAC
-
Material: Vinyl, Tin Plated Copper
