3M RV10-14Q Highland Insulated Ring Terminal 12 to 10 AWG 25 per Bag 051128600337

Product Description

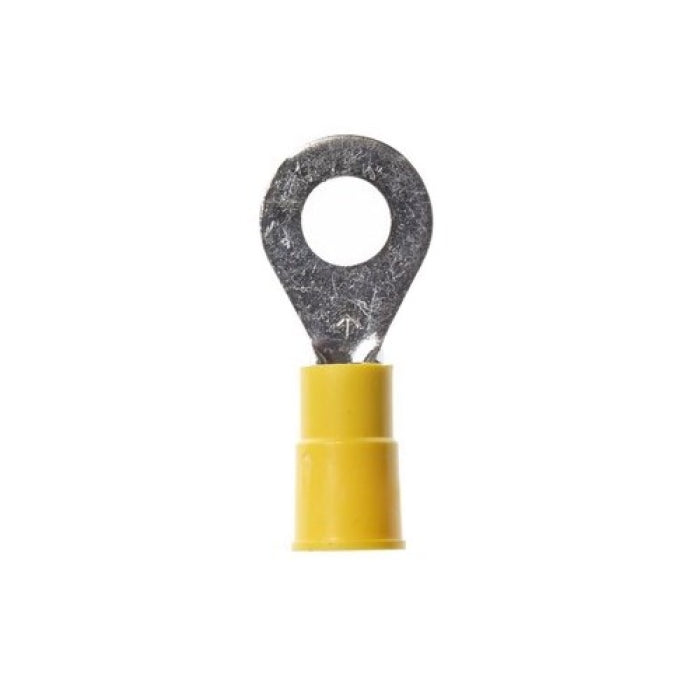

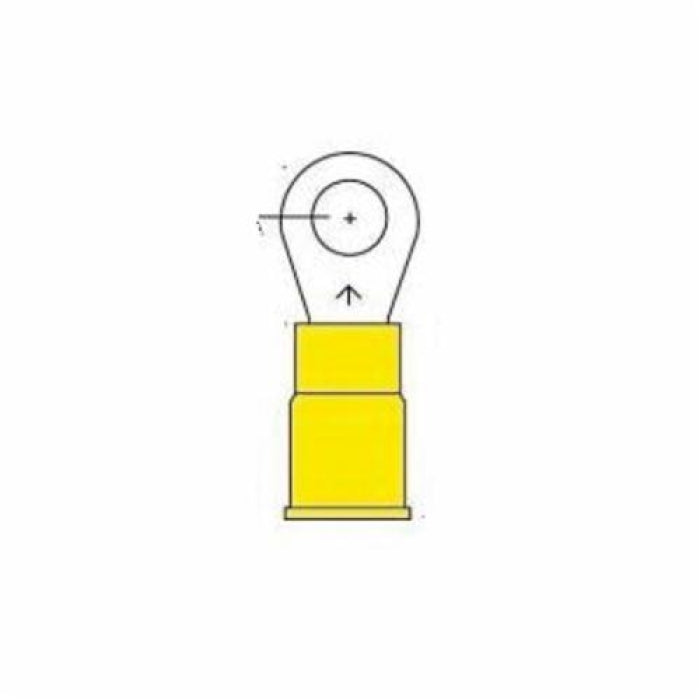

The 3M RV10-14Q Highland insulated ring terminal is designed for solid connections with conductors ranging from twelve to ten AWG. The terminal features a butted seam barrel, which provides a strong and reliable connection. It is made from electrolytic copper to ensure good conductivity and is tin-plated for enhanced corrosion resistance.

• Insulated for safety and reliability
• Fits around a quarter-inch stud
• Temperature rating from minus forty to two hundred twenty-one degrees Fahrenheit

Product Highlights

This terminal is ideal for applications in electrical systems and is especially suitable for building fixtures, luminaires, and signage.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: RV10-14Q

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Stud Size: 1/4 inch
• Length: 1.26 inches
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Insulation Type: Vinyl
• Standard Package: 25 per bag
• Barrel Size: 0.135 inches ID x 0.25 inches L
