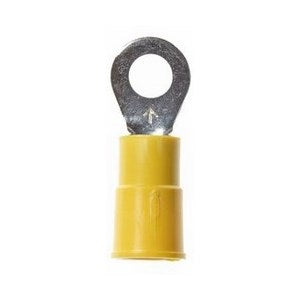

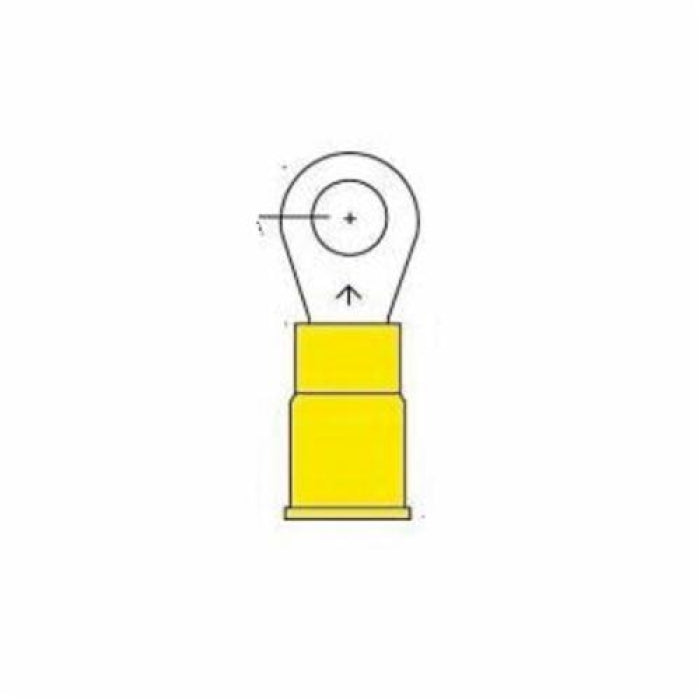

3M RV10-10Q Ring Terminal Insulated Standard 12 to 10 AWG 25/Bag

Product Description

The 3M RV10-10Q ring terminal is designed for secure and reliable connections. It accommodates wire sizes from twelve to ten AWG and fits a #10 stud. This terminal has a butted seam barrel for a snug fit, ensuring optimal conductivity. With a length of one point zero three inches, it is suitable for various electrical applications.

• Vinyl insulated for safety
• Funnel design for easy wire insertion
• Temperature range of -40 to 221 degrees F

Product Highlights

This ring terminal is ideal for building wire and fixtures, featuring a corrosion-resistant tin plating.

Product Information

Standard Information

• Brand: 3M
• MPN: RV10-10Q

Technical Specifications

• Color: Yellow
• Diameter of Barrel: 0.25 inches
• Length: 1.03 inches
• Width: 0.38 inches
• Thickness: 0.04 inches
• Stud Size: #10
• Insulation Material: Vinyl
• Voltage Rating: 600/1000 VAC
• Max Operating Temperature: 221 degrees F
• Conductor Size: 12 to 10 AWG
