3M RV10-10Q Highland Ring Terminal 12 to 10 AWG 25/BAG

Product Description

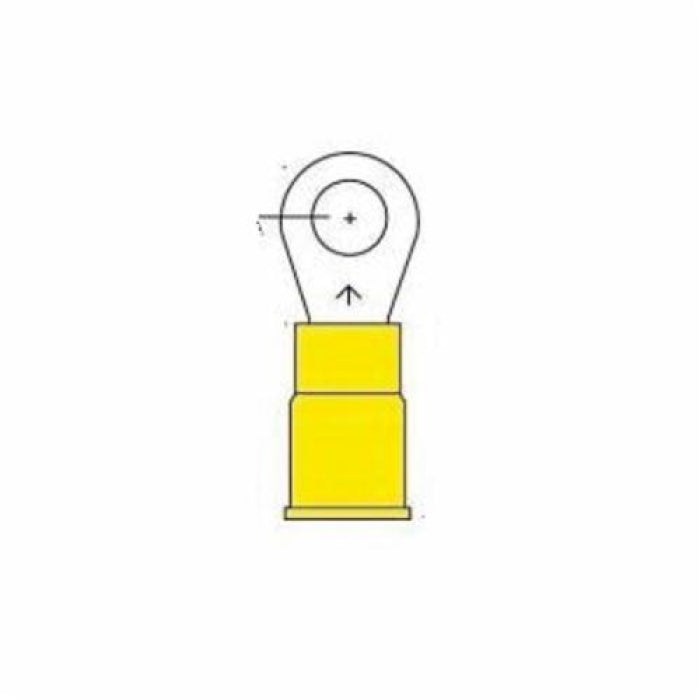

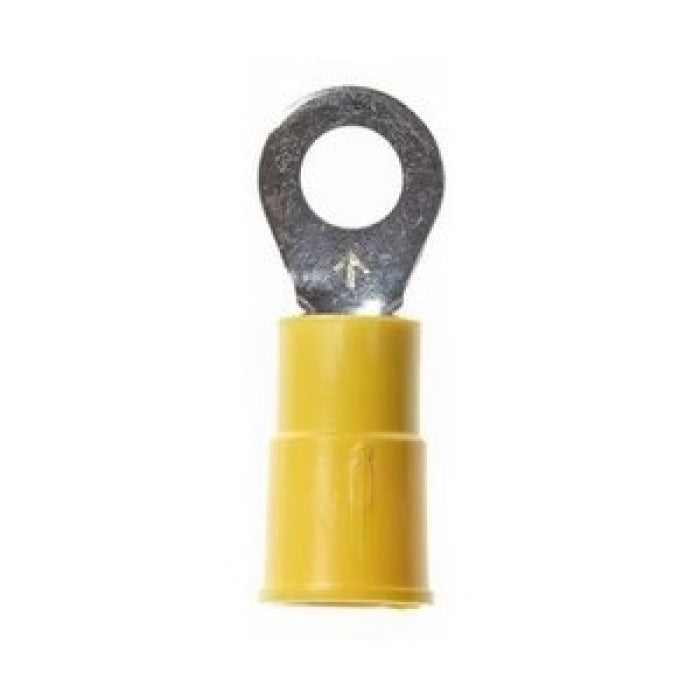

3M Highland RV10-10Q is a ring terminal designed for insulated standard applications. This terminal works with 12 to 10 AWG conductors and features a size #10 stud. The butted seam barrel measures 0.25 inches in length and has an inner diameter of 0.135 inches. It is constructed from electrolytic copper with a tin plating for corrosion resistance. The vinyl insulation is yellow, providing clear identification and safety.

• Insulation: Yellow vinyl, butted seam barrel.
• Temperature Rating: -40 to 221 degrees Fahrenheit.
• Voltage Rating: 600/1000 VAC.

Product Highlights

This terminal ensures a secure fit while providing reliable and safe performance.

Product Information

Standard Information

• Brand: 3M
• MPN: RV10-10Q

Technical Specifications

• Wire Size: 12 to 10 AWG
• Length: 1.03 inches
• Width: 0.38 inches
• Thickness: 0.04 inches
• Stud Size: #10
• Insulation Material: Vinyl
• Barrel Length: 0.25 inches
• Max Insulation Diameter: 0.25 inches
• Clearance: 0.29 inches
• Certifications: UL Listed, CSA Certified, RoHS Compliant
