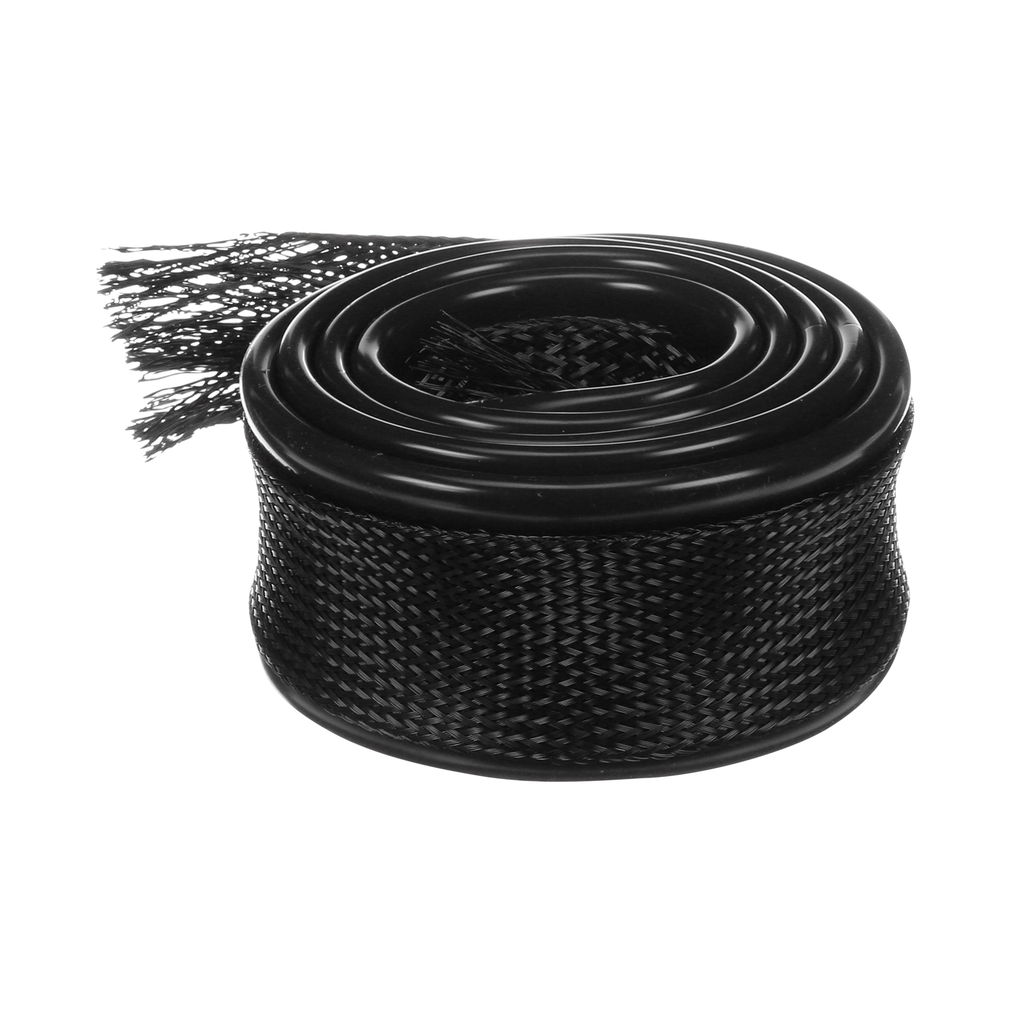

3M RJS-5-4FT Rejacketing Sleeve 4 Foot Coil

Product Description

The 3M RJS-5-4FT Rejacketing Sleeve provides safety and protection to the phase legs of three conductor shielded medium voltage power cables. It is designed to endure harsh termination operating environments. This sleeve incorporates a silicone rubber insulator wrapped in a polyester braid, giving it resistance against UV rays, ozone, moisture, and corrosion.

• Designed for medium voltage cables, rated for up to thirty-five kV.
• Protects the phase legs after the cable jacket has been removed.
• Compatible with 3M Cold Shrink QT II and QT III terminations.

Product Highlights

This product ensures effective protection for power cables from environmental factors, making it suitable for reliable cable termination applications.

Product Information

Standard Information

• Brand: 3M
• MPN: RJS-5-4FT

Technical Specifications

• Type: Rejacketing Sleeve
• Length: 4 Foot
• Material: Silicone Rubber
• Color: Dark Gray
• Conductor Size: 300 to 325 MM (3.3 Kilovolt, JIS), 800 to 1000 KCMIL (5 Kilovolt, AEIC)
• Wall Thickness: 0.065 Inch
• Operating Temperature: 356 Deg F
• Ultimate Tensile Strength: 1058 PSI
