Product Description

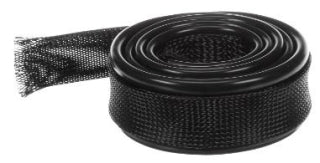

The 3M RJS-4-4FT Rejacketing Sleeve is designed for use with three conductor medium voltage shielded power cables. This sleeve fits cable insulation with diameters from one point zero two to one point two eight inches and supports voltage levels between three point three to thirty-five kilovolts.
- Compatible with 3M Cold Shrink QT-II and QT-III silicone rubber terminations.
- Helps protect phase legs from moisture, corrosion, and UV exposure.
- Simple hand application, no special tools required.
Product Highlights
This rejacketing sleeve provides key protections in challenging environments, ensuring safe and reliable operation for electrical connections.
Product Information
Standard Information
-
Catalog Number: RJS-4-4FT
-
Brand: 3M
Technical Specifications
-
Material: Silicone Rubber
-
Color: Dark Gray
-
Length: 4 feet
-
Overall Diameter Range: 1.02 to 1.28 inches
-
Voltage Range: 3.3 to 35 kV
-
Operating Temperature: 356 degrees Fahrenheit
-
Standard Package: 10 per case
-

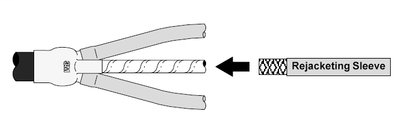

Application: Protect shielded phase legs after jacket removal in preparation for termination
